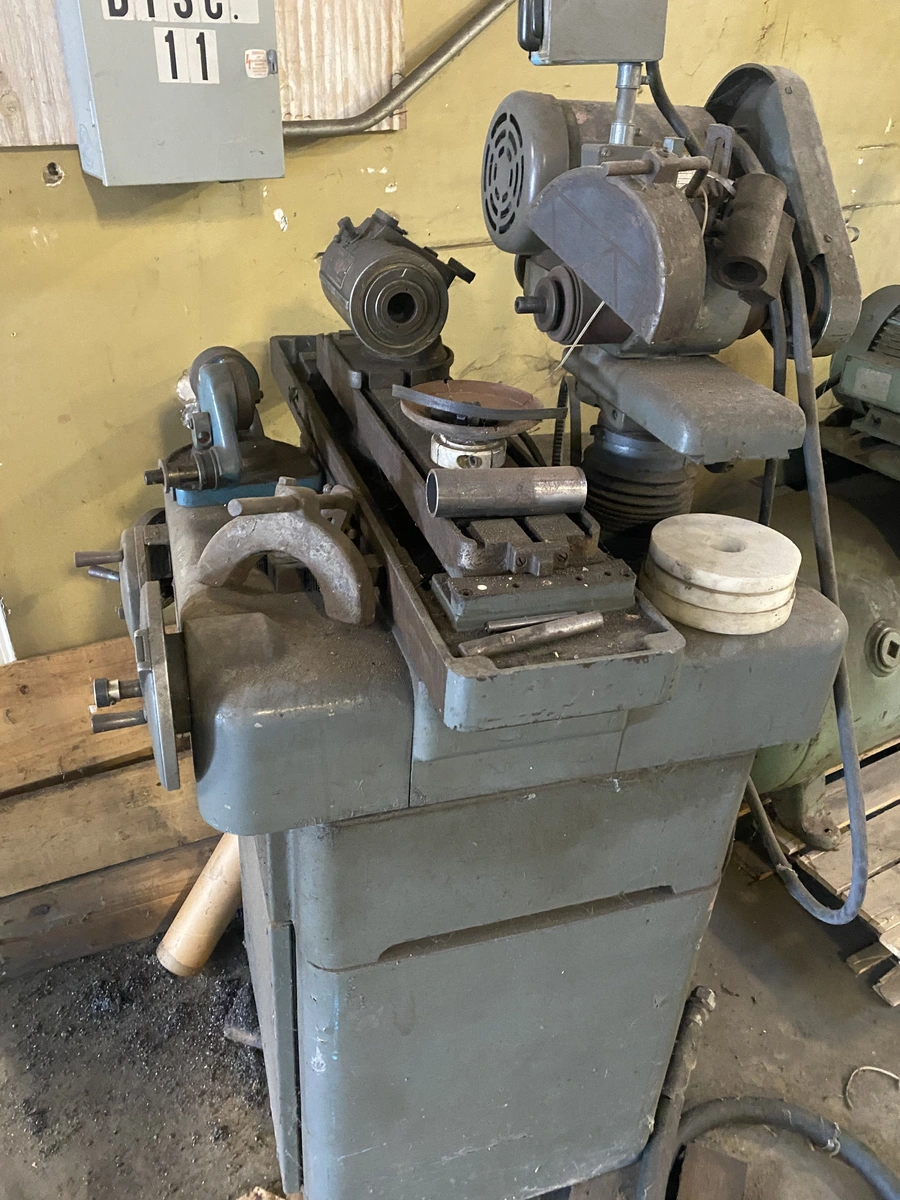

K.O. Lee BA960 Tool & Cutter Grinder

Distance between centers........................22"
Table working surface...........................27-1/4” x 5-1/4"
Table traverse..................................14"
Fast feed per revolution of handwheel...........21-3/16"
Slow feed per revolution of handwheel...........9/16"
Ratio fast:slow................................5:1
Vertical movement of column.....................7"
Feed per revolution of handwheel (0.001 grad.)..0.050"
Maximum distance shaft to table top.............10 3/4"
Centerline height of fixtures to table top......4.130"
Dimensions......................................36" X 45" 64" High
Weight .........................................1,000 lbs

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
