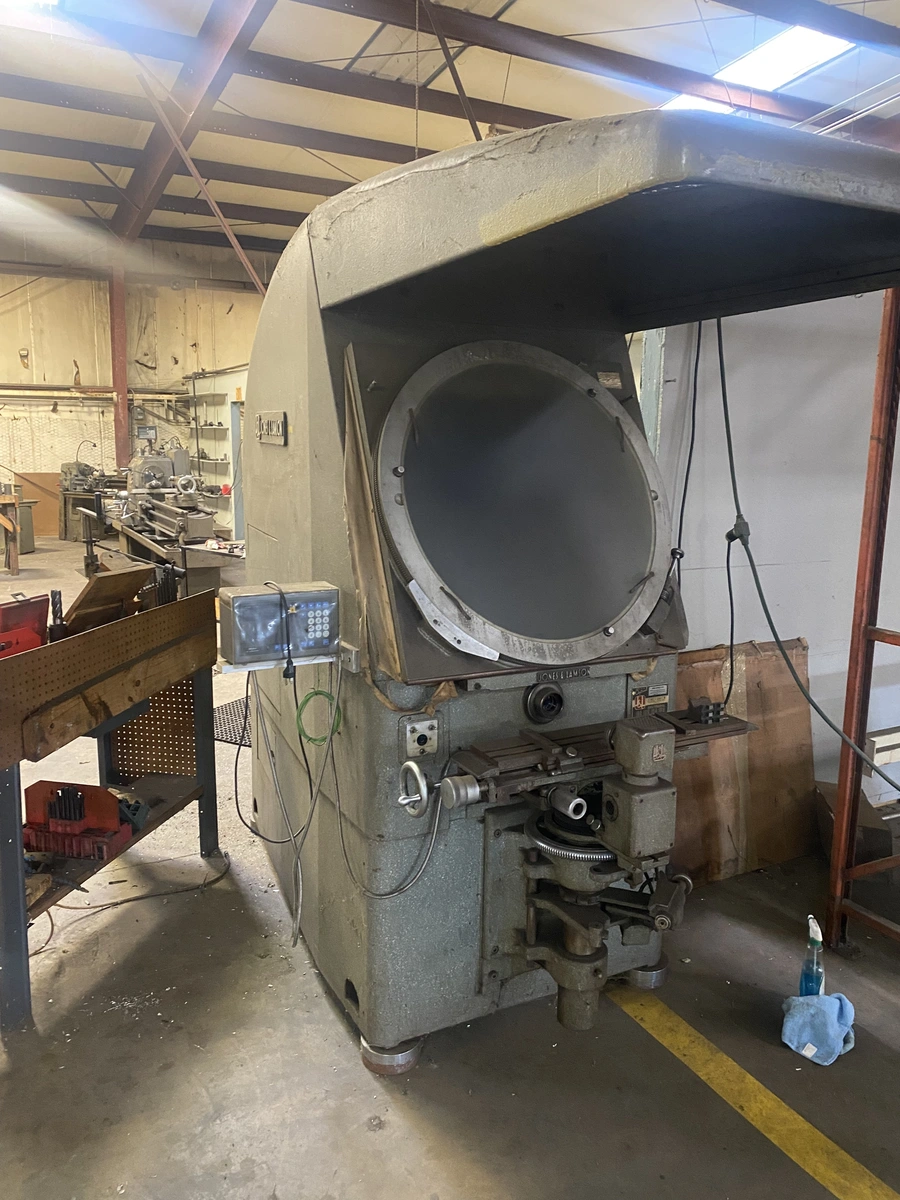

Jones & Lamson FC-30 Optical Comparator

SCREEN DIAMETER....................................30"
SIZE OF WORK TABLE.................................6" X 30"
LONGITUDINAL TABLE TRAVEL..........................8"
VERTICAL TABLE TRAVEL..............................5"
ANGULAR MEASURING CAPACITY.........................360 DEG. CHART ROTATION
HELIX ANGLE ADJUSTMENT (TABLE SWIVELS, L&R)........15 DEG
CROSS TRAVEL FOR FOCUSING..........................1- 3/8"
DISTANCE, LENS CENTERLINE TO TABLE.................3-1/4" - 8-1/4"
FLOOR SPACE (SMALL FOOTPRINT)......................39"LR X 91"FB X 79"H
MACHINE WEIGHT.....................................2,500 LBS
