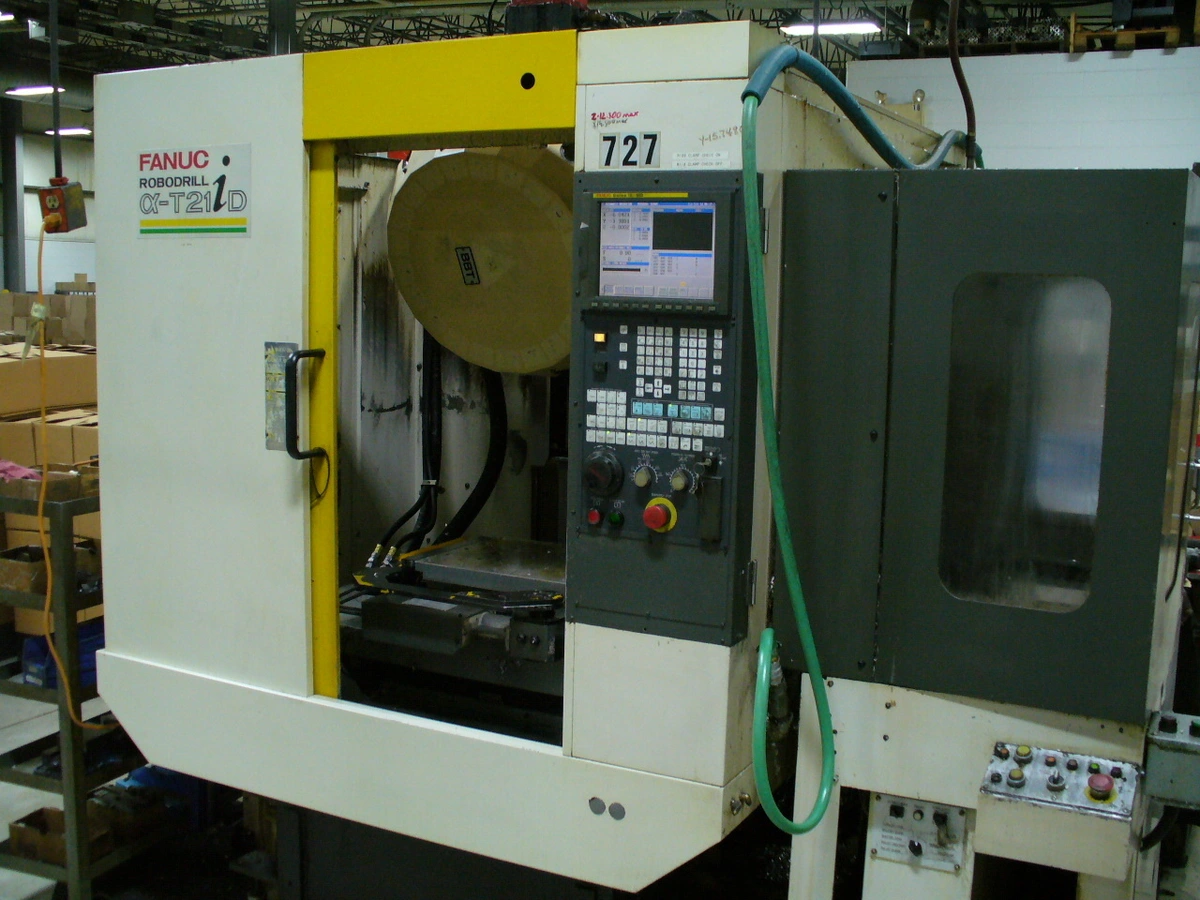

Fanuc RoboDrill Alpha T21iD

Table Size.......................25.59" x 15.74"
Table Capacity...................550 LBS
Spindle To Table Distance........5.91" - 18.89"
X-Axis Travel....................19.68"
Y-Axis Travel....................15.74"
Z-Axis Travel....................13"
Spindle Drive....................7.4 / 5 HP
Spindle Taper....................BT-30
Spindle Speeds...................10,000 RPM
Rapid Traverse Rate (X/Y/Z)......2,125 IPM
Tool Changer Capacity............21 Stations
Max Tool Length..................9.84"
Tool Change Time.................1.8 seconds Cut to Cut
Max Tool weight..................6.6 LBS
Main Unit Dimensions.............64.00" x 80.00" x 106.00"
Main Unit Approx Weight..........4,400.00 lbs
