DMG Mori EcoTurn 450 V1 CNC Turning Center
Have one to sell?
ConditionUsed
1 available

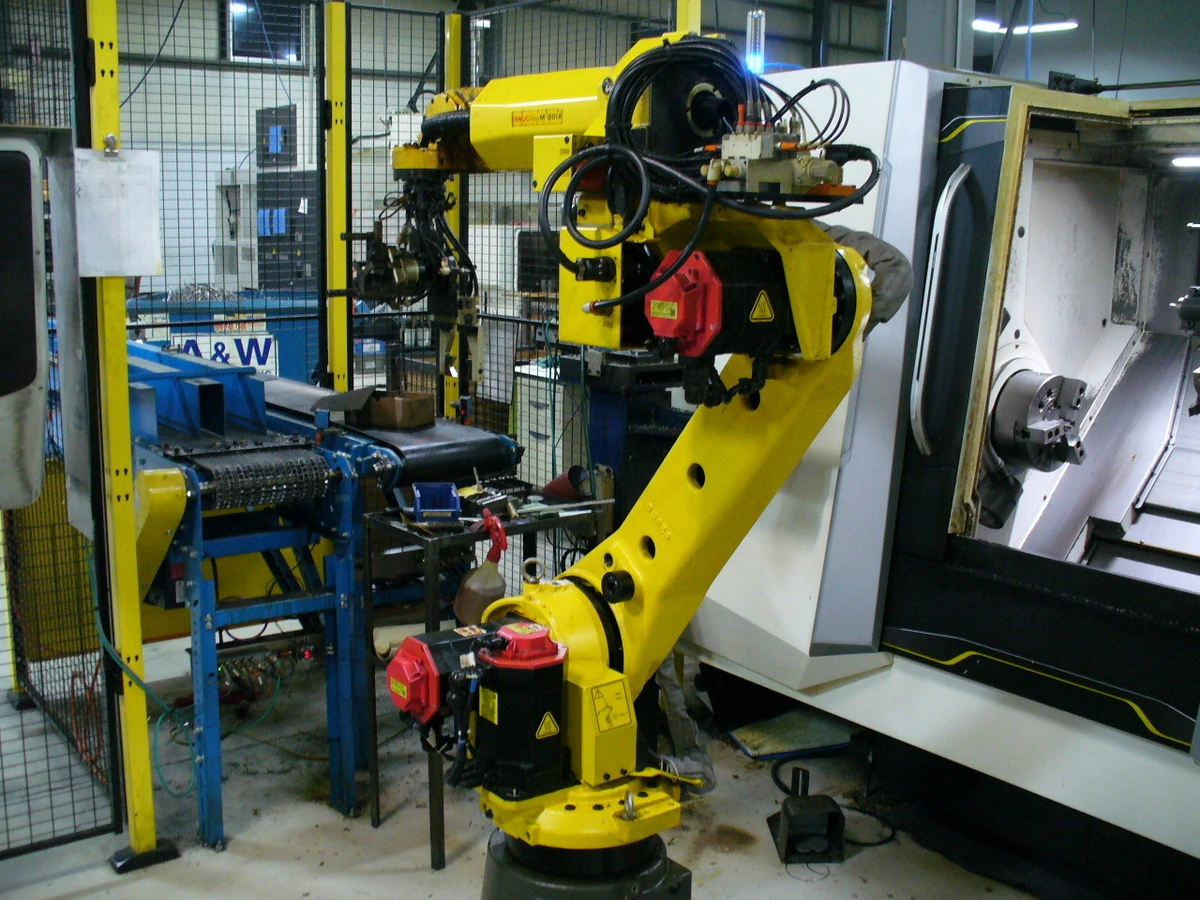

2016 DMG Mori EcoTurn 450 (V1) CNC Turning Center with Fanuc M20iA Robot Loader and New London In/Out Conveyors.
Swing over Bed (Z-Axis Slide Cover)..........26.77"
Swing over Bed (Chuck Wiper Base Cover)......24.80"
Swing over Cross Slide.......................1.57"
Distance Between Centers.....................26.97"
Maximum Turning Diameter.....................15.98"
Maximum Turning Length.......................22.36"
X-Axis Travel................................10.53"
Z-Axis Travel................................23.62"
Spindle Motor................................25 / 16 HP
Spindle Nose.................................A2-8
Spindle Bore.................................3.58"
Bar Work Capacity............................3.15"
Minimum Spindle Indexing.....................0.01
Torque, Max. (40/100%).......................272.9 / 206.5 ft/lbs
Spindle Speed................................4,000 RPM
Rapid Traverse (X/Z).........................1181 / 1181 IPM
Turret Stations..............................12
Tailstock Stroke.............................19.69"
Tailstock Spindle Taper......................MT5
Machine Weight...............................12,100 LBS
SLIMline Panel with MAPPS IV (Mitsubishi) CNC Control
10" 3-Jaw Hydraulic Chuck
Tailstock
Tool Presetter
Chip Conveyor
Fanuc Robot M-20iA Type: A05B-1222-B202
Fanuc System R-30iB Robot Controller
New London Engineering 800-12'-12'0" Infeed Conveyor
New London Engineering 200-12'-12'0" Outfeed Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
