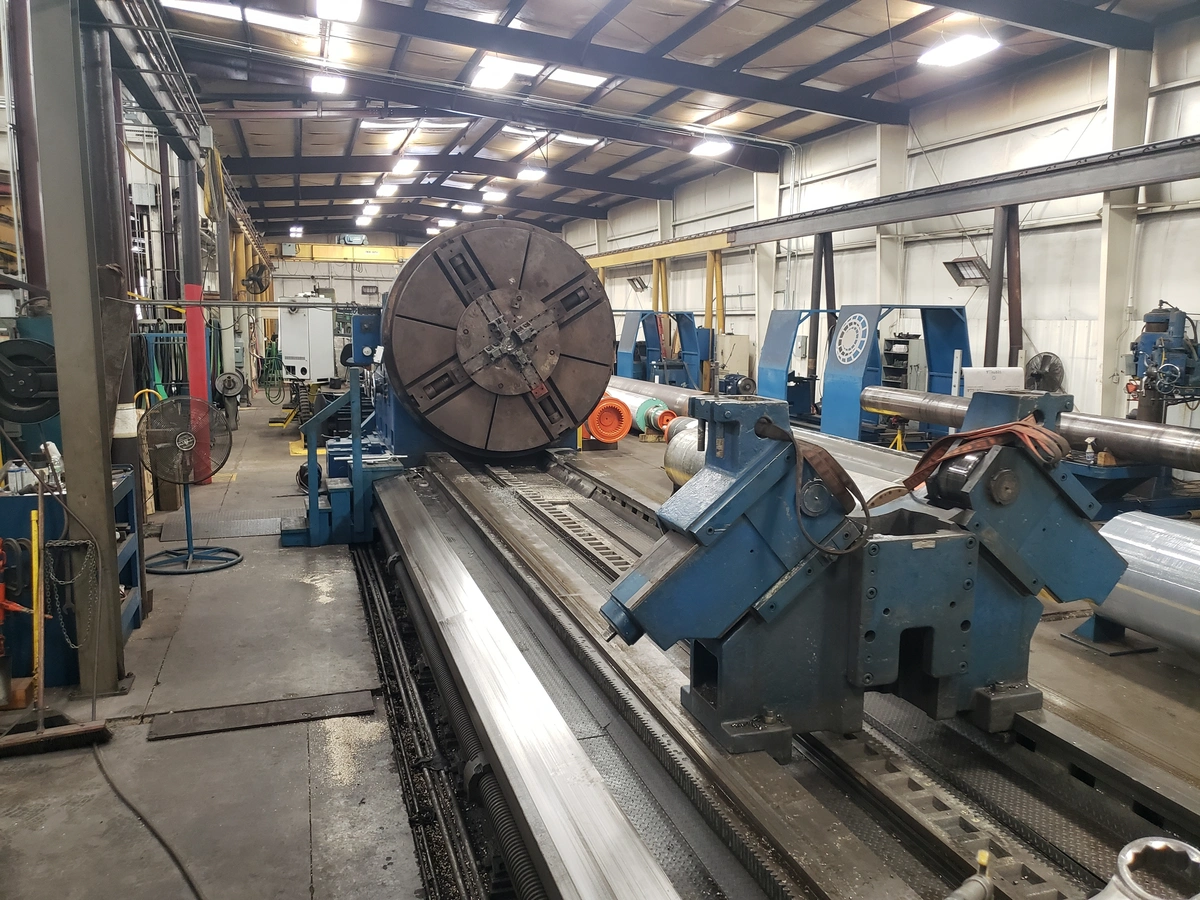

Niles A96BT 116" X 85' Heavy Duty Manual Lathe
Have one to sell?
ConditionUsed
1 available
Niles A96BT 116" X 85' Heavy Duty Manual Lathe with 100" 4-Jaw Chuck, 3 Steady Rests, Tailstock with Power Feed, 24" Chuck mounted to Tailstock Quill, 200 HP Motor.
MAXIMUM SWING........................116"
MAX. SWING OVER CARRIAGE BRIDGE......77"
CENTER DISTANCE, TURNING.............960"
SPINDLE MOTOR........................200 HP DC Spindle Drive 440/3/60
SPINDLE SPEEDS: (3-RANGES)...........0.75-60 RPM
WEIGHT CAPACITY......................200 TON
THREADING RANGE......................1-46 TPI
RANGE OF THREADING (64)..............5.33-1"
TAILSTOCK QUILL DIAMETER.............26"
TAILSTOCK QUILL TRAVEL...............31.5"
100" 4-JAW CHUCK
3-STEADY RESTS
TAILSTOCK WITH POWER FEED
3-WAY BED (4-SECTIONS)
INCH THREADING
TAPER CUTTING BY POWER COMPOUND ON CARRIAGE
HARDENED V-TYPE WAYS
24" DIAMETER CHUCK MOUNTED TO TAILSTOCK QUILL
200 HP DC SPINDLE DRIVE 440/3/60
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
