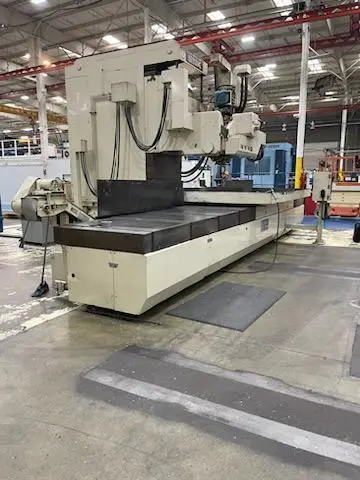

SNK FSP-120V CNC 5-Axis Profiler Mill

Table Size............................124" x 48"
Number of Std T-Slots.................5
T-Slot Width..........................5/8" ( Table Tilt )
Max Weight on Table...................22,000 LBS (Table Rotate)
Spindle Nose to Table.................5.0" – 33.0"
X-Axis................................120.0"
Y-Axis................................50.0"
Z-Axis................................24.0"
A-Axis................................+/- 25° degrees
B-Axis................................+/- 25° degrees
Rapid Traverse Rates..................200 IPM
Spindle Power.........................30 HP
Spindle Taper.........................50
Speed Range...........................4,000 RPM
Tool Changer Capacity.................40 ATC
Max Tool Weight.......................33 LBS
Max Tool Dia..........................5.2"
Max Tool Length.......................11.8"
Tool Changing Time....................4.2 Seconds
Overall Dimensions....................315" x 170" x 138" High
Weight................................97,000 LBS
