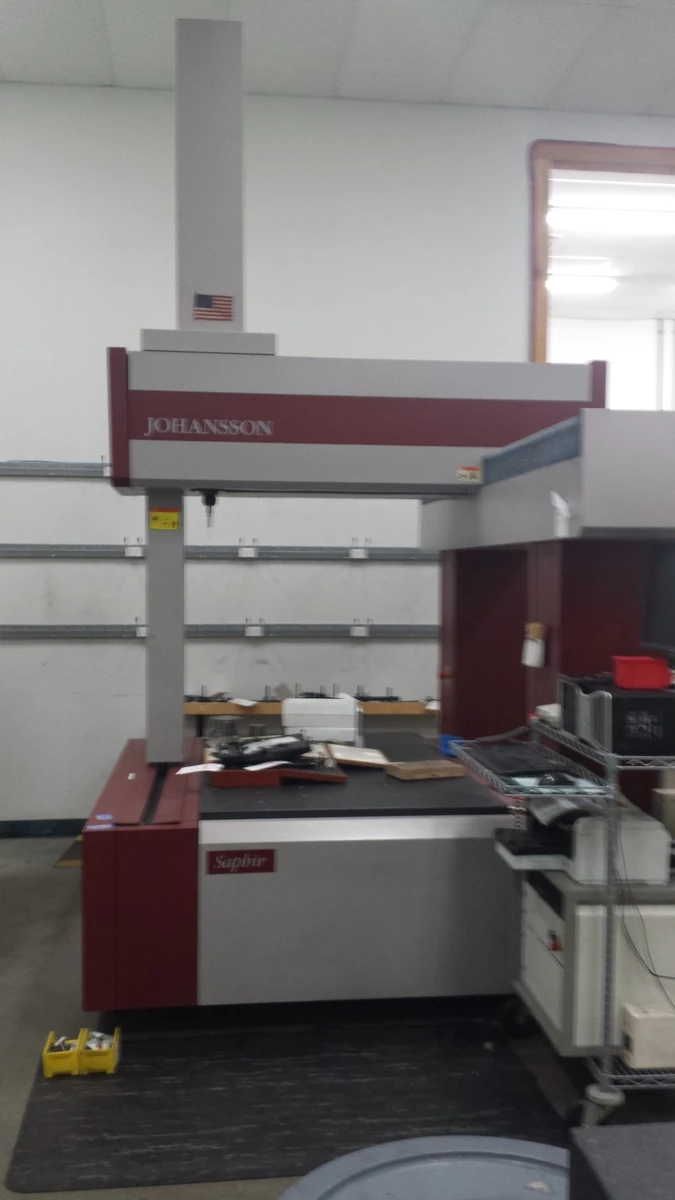

C.E. Johansson Saphir 15-10 CMM

SPECIFICATIONS:
Measuring Table Surface.................41.33" x 69.44"
X-Axis Measuring Range..................1000mm 39.37"
Y-Axis Measuring Range..................1500mm 59.05"
Z-Axis Measuring Range..................1000mm 39.37"

DIMENSIONS:
B.......................................2010
B1......................................2110
H1......................................3690
H2......................................2450
D1......................................2660
D2......................................1970
Ht......................................700
Hp.....................................1150

Resolution, µm......................................0,1
Repeatability, R Dynamic, µm........................3,7
Volumetric length meas. accuracy M {U3), µm
L= length in meter acc. to VDINDE 2617..............4,3+4L
Temperature span, °C................................±2°C within 15-30°C
Max speed, mm/s.....................................500
Acceleration, m/s2..................................1,5
Power Supply........................................230 Volt ±10%. Single phase 50 Hz, 1500 VA {10 A)
Air Pressure........................................6-10 kp/cm2 (0.6 - 1 MPa)
Air Consumption.....................................48 I/min per kp/cm2 @ 5 kp/cm2 (240 NI/min)
Machine Weight (Excluding Computer & Packing).......3,968 LBS
