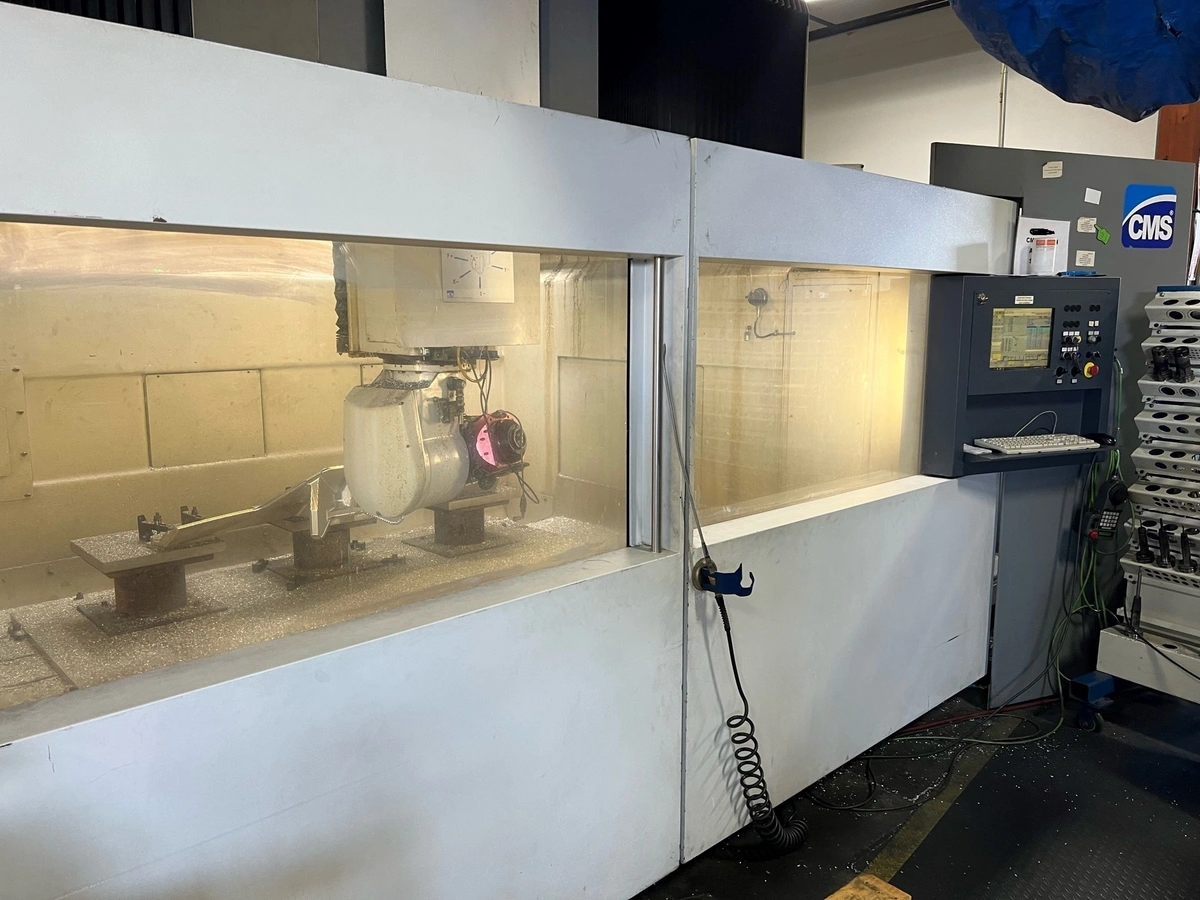

CMS type CRONUS-K-26/15-Z1300 5-Axis Machining Center

Table Size..................................102.36" x 59.05"
X-Axis Travel...............................102.36"
Y-Axis Travel...............................59.05"
Z-Axis Travel...............................51.18"
A-Axis Travel...............................+/- 110°
C-Axis Travel...............................+/- 300°
X Quick Positioning Speed / Acceleration....85 m/min. (3,346”/min.) / 3.0 m/s2 (118.1”/s2)
Y Quick Positioning Speed / Acceleration....85 m/min. (3,346”/min.) / 3.0 m/s2 (118.1”/s2)
Z Quick Positioning Speed / Acceleration....45 m/min. (1,771”/min.) / 3.0 m/s2 (118.1”/s2)
A Quick Positioning Speed / Acceleration....36,000°/min. / 2,500°/s2
C Quick Positioning Speed / Acceleration....36,000°/min. / 2,500°/s2
Power.......................................28 kW (37.5 HP) from 4,300 rpm
Maximum Speed...............................24,000 RPM
Internal Cooling............................By liquid
Tool cooling................................Air pressure or coolant - from external hose
Spindle Taper...............................HSK 63A
Torque......................................63 Nm (46.5 foot-pounds) / S1
Bearing type................................Ceramic (front-back)
Spindle bearings lubrication................By grease long life
Distance from pivot point to spindle nose...228 mm (8.97”)
Machine Dimensions..........................229" x 158" x 209"
