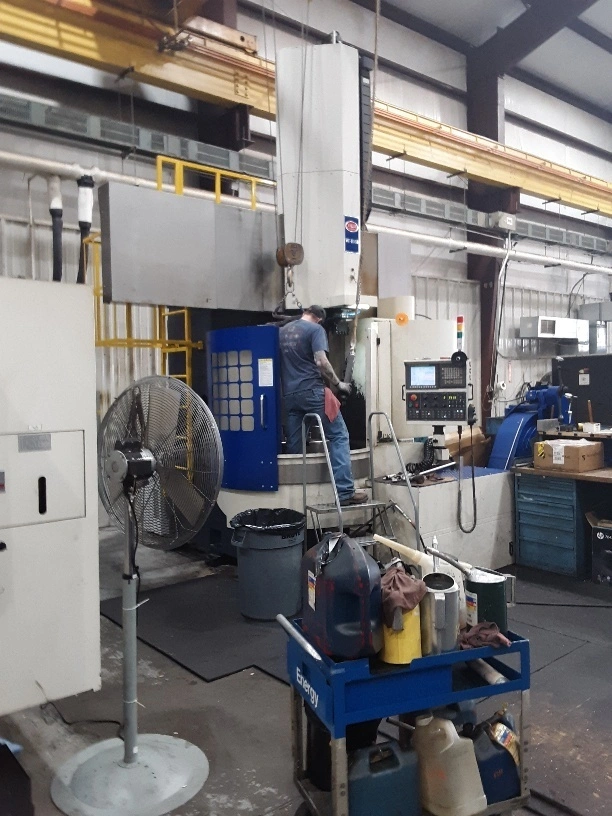

Valid VT-1000 VTL

Max. swing diameter.........................47.24” (1200 mm)
Max. turning diameter.......................47.24” (1200 mm)
Max. turning height.........................39.37(1000 mm)
Max. distance bottom ram to chuck...........51” (1295 mm) (without tool holder)
Table diameter..............................Ø39.37(Ø1000mm)
Max. table load.............................19,800 lbs (9,000 KGS)
Spindle motor type..........................FANUC α30i/6000
Motor output (30 min.)......................183.9 ft-lb(249.1 NM)
Horsepower..................................50 HP
Gear ranges.................................2
Spindle speed range.........................1-250; 2-500 RPM
Thrust Bearing..............................NSK 610TMP7102A
Max. X-axis travel..........................45.28” (1,150 mm)
Max. Z-axis travel..........................39.7” (1,000 mm)
X-axis rapid................................393 IPM(10 m/min)
Z-axis rapid................................590 IPM(15 m/min)
X-axis servo motor..........................FANUCα40i; 6 KW (8 HP)
Z-axis servo motor..........................FANUCα40i; 6 KW (8 HP)
Magazine capacity...........................12
Tool holder.................................Coupling
Driven type.................................Servo motor indexing
Maximum tool length.........................19.7” (500 mm)
Maximum tool weight.........................88 lbs (40 kgs)
Tool change time pocket to pocket...........1 Sec
Coolant tank capacity.......................50 gallons
Power requirement...........................220/3/60 +/- 10%
Dimension...................................98” x 138” x 177”
Machine weight..............................33,000 lbs (15,000 KGS)
