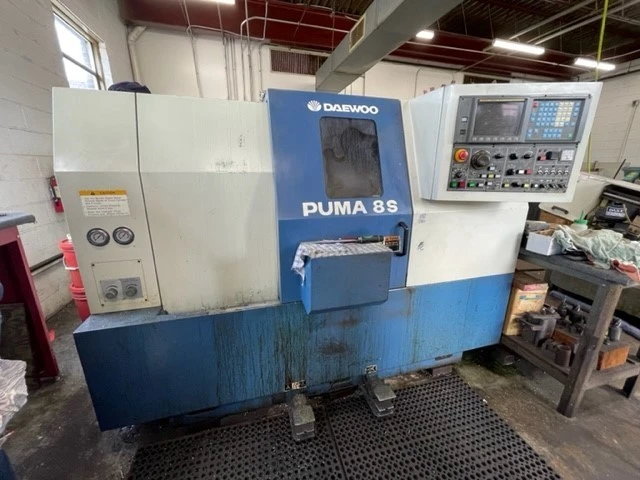

Daewoo Puma 8S CNC Lathe

Max Turning Diameter..........14.6″
Max Turning Length............20.7″
Max Bar Capacity..............2.05″
Swing Over Bed................19.7″
Distance Between Centers......21.9″
X Axis Travel.................8.3″
Z Axis Travel.................21.7″
Rapid Traverse X Axis.........630 IPM
Rapid Traverse Z Axis.........787 IPM
Spindle Nose..................A2-6
Spindle Bore..................2.4″
Spindle Speed.................4000 RPM
Spindle Motor.................25 HP
Turret Capacity...............12 Stations
Turret Index Time.............1 Second
Tailstock Taper...............MT-4
Tailstock Quill Dia..........3.1″
Tailstock Quill Travel........4.0″
Power.........................21 kva, 220v / 3-Phase
Overall Dimensions............114″ x 76″ x 77″ High
Weight........................11000 lbs
