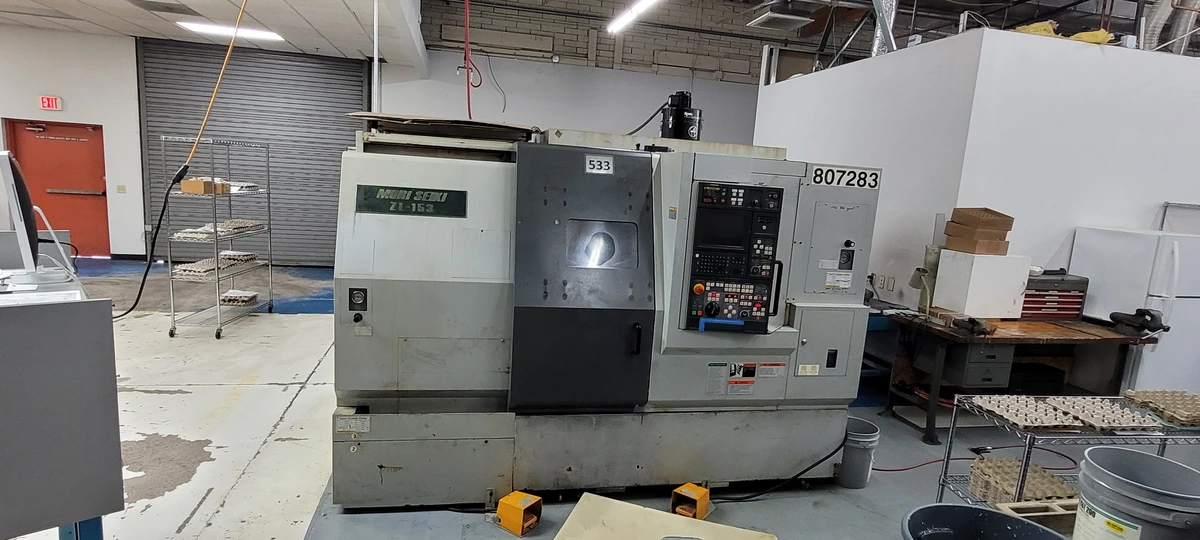

Mori Seiki ZL-153 SMC

Swing over Bed............................26.77"
Swing over Cross Slide....................20.08"
Maximum Distance Between Spindle Noses....29.72"
Maximum Turning Diameter
Turret (1)................................17.32"
Turret (2)................................12.67"
Maximum Turning Length....................18.54"
X-Axis Travel Turret 1....................9.25" (8.66" + .59")
X-Axis Travel Turret 2....................6.89" (6.34" + .55")
Z-Axis Travel Turret 1....................21.64"
Z-Axis Travel Turret 2....................19.29"
B-Axis Travel Spindle.....................21.85"

Main Spindle:
Spindle Motor.............................10 HP
Number of Spindle Speed Ranges............2
Spindle Speed.............................5,000 Rpm
Type of Spindle Nose......................Jis a25
Through Spindle Hole Diameter.............2.20"
Minimum Spindle Indexing Angle............0.001
Inner Bearing Diameter....................3.54"

Sub-Spindle:
Spindle Motor.............................7.5 HP
Number of Spindle Speed Ranges............2
Spindle Speed.............................5,000 Rpm
Type of Spindle Nose......................Jis a25
Through Spindle Hole Diameter.............1.69"
Minimum Index Angle.......................0.001
Spindle Bearing Inner Diameter............3.14"
Number of Turrets.........................2
Type of Turret............................12 Position
Square Shank Height of Tool...............3/4"
Shank Diameter of Boring Bar..............1.25" or 1" for Dual Boring Bar Holders
Rotary Tool Speed.........................3,000 RPM
Rapid Traverse Rate (X1,X2),(Z1,Z2).......708, 944 IPM
Jog Feed Rate.............................0-50 IPM
Machine Height............................82.91"
Floor Space...............................156.22" X 84.65"
Machine Weight............................12,500 LBS
