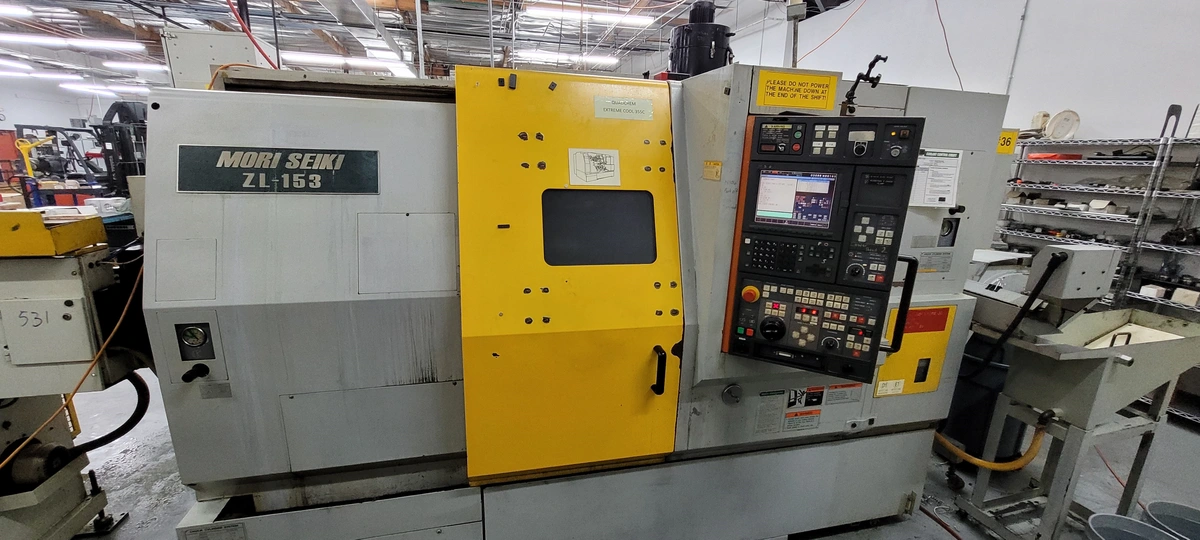

Mori Seiki ZL-153 SMC

Swing over Bed............................26.77"
Swing over Cross Slide....................20.08"
Maximum Distance Between Spindle Noses....29.72"
Maximum Turning Diameter
Turret (1)................................17.32"
Turret (2)................................12.67"
Maximum Turning Length....................18.54"
X-Axis Travel Turret 1....................9.25" (8.66" + .59")
X-Axis Travel Turret 2....................6.89" (6.34" + .55")
Z-Axis Travel Turret 1....................21.64"
Z-Axis Travel Turret 2....................19.29"
B-Axis Travel Spindle.....................21.85"
Number of Turrets.........................2
Type of Turret............................12 Position
Square Shank Height of Tool...............3/4"
Shank Diameter of Boring Bar..............1.25" or 1" for Dual Boring Bar Holders
Rotary Tool Speed.........................3,000 RPM
Rapid Traverse Rate (X1,X2),(Z1,Z2).......708, 944 IPM
Jog Feed Rate.............................0-50 IPM
Machine Height............................82.91"
Floor Space...............................156.22" X 84.65"
Machine Weight............................12,500 LBS

MAIN SPINDLE:
Spindle Motor.............................10 HP
Number of Spindle Speed Ranges............2
Spindle Speed.............................5,000 Rpm
Type of Spindle Nose......................Jis a25
Through Spindle Hole Diameter.............2.20"
Bar Capacity..............................1.77"
Minimum Spindle Indexing Angle............0.001
Inner Bearing Diameter....................3.54"

SUB-SPINDLE:
Spindle Motor.............................7.5 HP
Number of Spindle Speed Ranges............2
Spindle Speed.............................5,000 Rpm
Type of Spindle Nose......................Jis a25
Through Spindle Hole Diameter.............1.69"
Minimum Index Angle.......................0.001
Spindle Bearing Inner Diameter............3.14"
