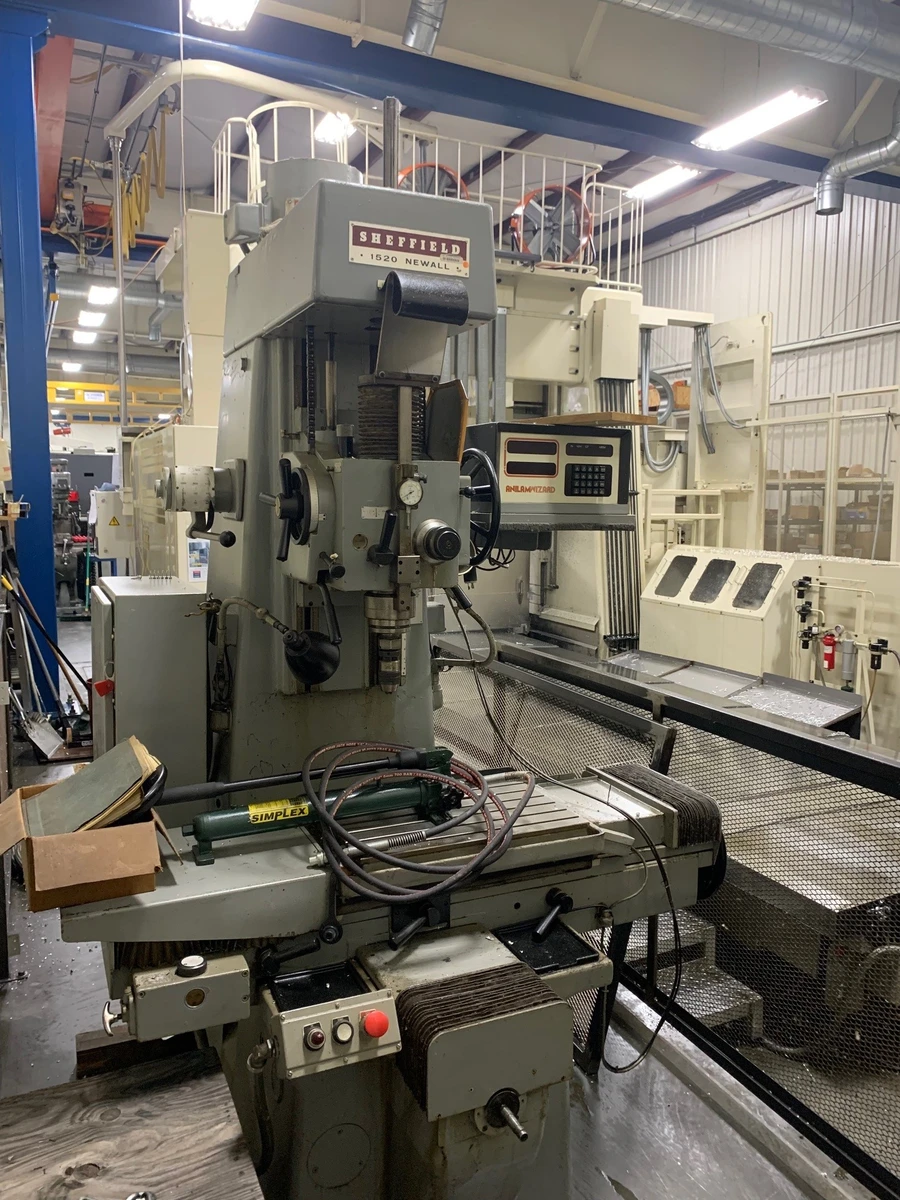

Newall 1520 Vertical Jog Boring Machine Capable of Boring, Facing, Milling, Drilling, Small Hole Drilling, Tapping, Jig Grinding
Table Size..................................21" x 15"
Spindle Nose to Table.......................3" - 20"
Spindle Center to Column Throat.............13.77"
Longitudinal Travel.........................15.5"
Cross Travel................................10.5"
Spindle Motor...............................1.5 HP
Spindle Taper...............................ISO-30
Spindle Feeds .0015"/rev....................0.003"/rev, 0.006"/rev
Spindle Speeds (12).........................66 - 3,000 RPM
Diameter of Quill...........................3.5"
Quill Travel................................5"
Vertical Quill Head Adjustment on Column....12"
Spindle Sleeve..............................MT-2
Machine Dimensions..........................55" x 59" x 98"
Machine Weight..............................5,000 LBS
Anilam Wizard Digital Read-Out
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
