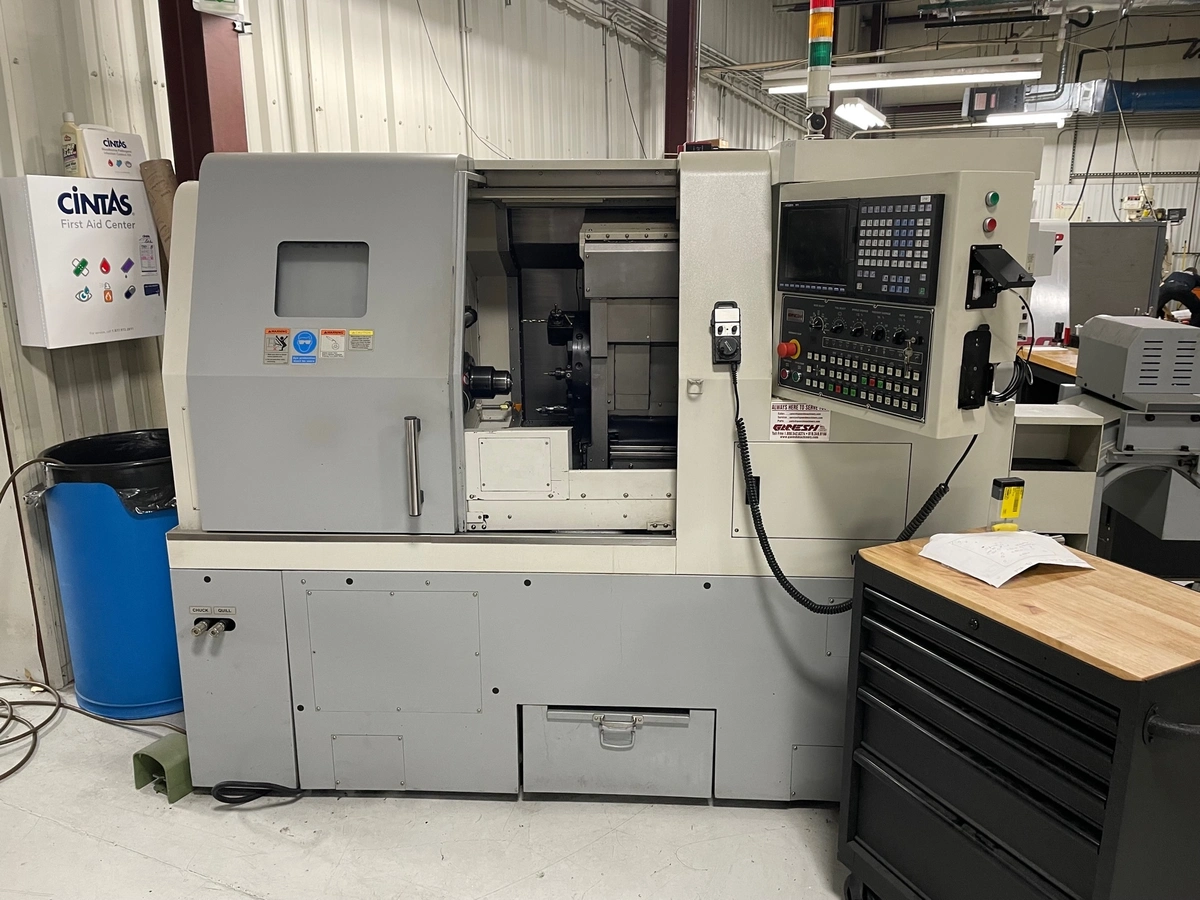

2013 Ganesh Turning Center with Live Milling & Y-Axis
Swing......................15.75"
Max. Turning Diameter......8.66"
Chuck Size.................8″
Spindle Taper..............A2-5
Bar Capacity...............2″ (51mm)
Spindle HP.................15/20 HP
Tool Turret................12 Station
Ways.......................Box
Tailstock..................Standard
Spindle RPM................4,500 RPM
Number of Live Tools.......12
Y-Axis Travel..............4″
C-Axis.....................360,000 Positions
Dimensions.................111” x 71” x 79” (Includes Chip Conveyor)
Weight.....................9,040 LBS
Mitsubishi M-70 CNC Control
Ethernet Port
3J collet Chuck
Parts Catcher
Live Tooling
Y-Axis
Full C-Axis
Programmable Tailstock
Renishaw HPGA-LP2 Tool Probe
Chip Conveyor
2 Axial & 2 Radial Live Holders
Assorted 3J Collets
Full Set of ER25 Collets
Misc. Turning & Cutoff Toolholders
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
