Monarch 10" EE Precision Lathe
Have one to sell?
ConditionUsed
1 available

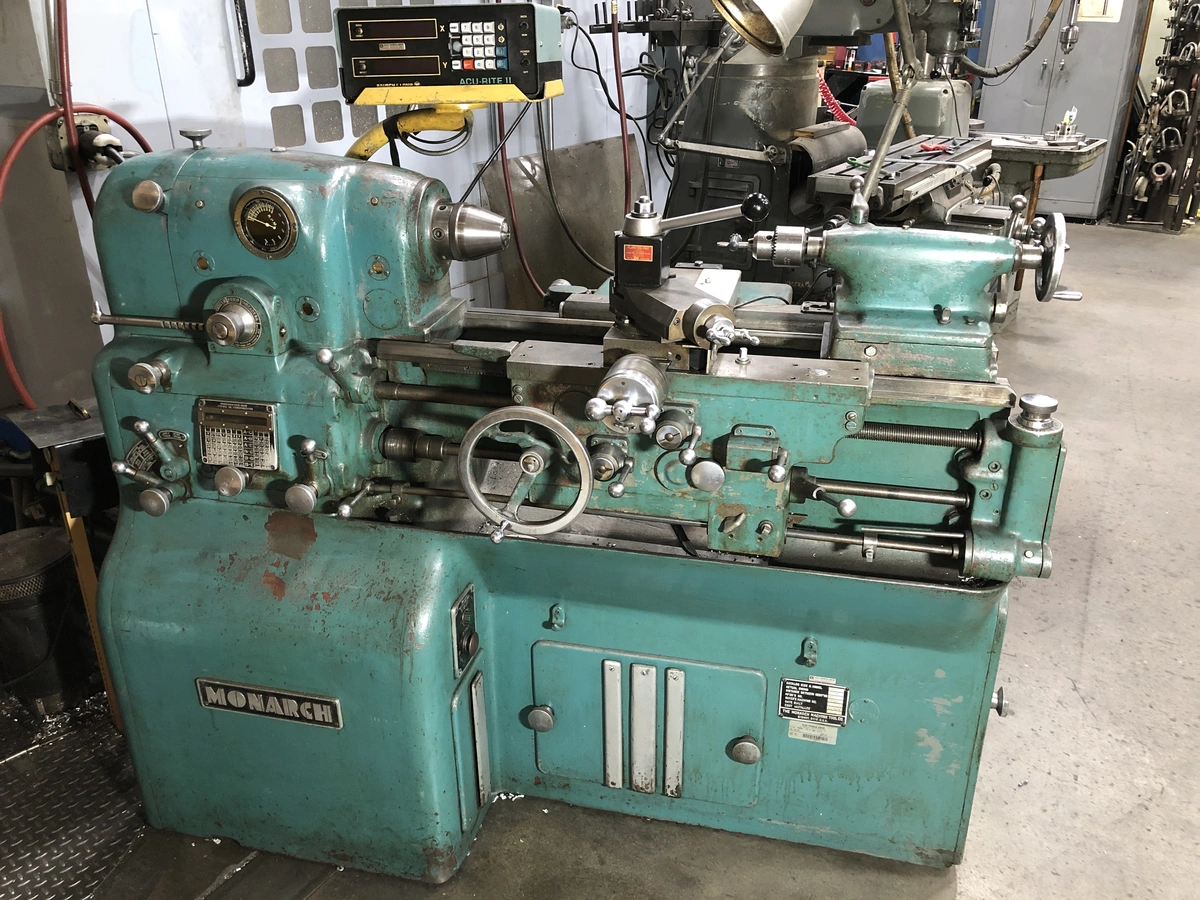

Monarch 10" EE Lathe with DRO, Mimik Tracer and Upgraded Electric AC Drive
SWING OVER BED..................12-1/2"
SWING OVER CROSS SLIDE..........7-1/4"
DISTANCE BETWEEN CENTERS........20"
SPINDLE SPEEDS (VARIABLE).......40-4,000 RPM
SPINDLE NOSE....................D1- 3
HOLE THRU SPINDLE...............1-13/32"
THREADS (INCH) (60).............3-184 TPI
FEEDS (50)......................0.0005"-0.016"
CROSS SLIDE TRAVEL..............8"
TAILSTOCK QUILL TAPER...........#2MT
TAILSTOCK QUILL TRAVEL..........3-1/2"
HORSEPOWER......................3 HP
DIMENSIONS (L X D X H)..........63" x 35" x 48"
WEIGHT..........................3,000 LBS
ACU-RITE II Digital Readout
Tailstock
Upgraded Electric AC Drive
Mimik Tracer
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
Monarch 10" EE Lathe with DRO, Mimik Tracer and Upgraded Electric AC Drive
Imperial
| Swing | 12.5" |
| Centers | 30" |
| Spindle Bore | 1.4063" |
| Power | 7.5 hp |
| RPM | 4,000 RPM |
| Swing Over Cross Slide | 7.25" |
SWING OVER BED..................12-1/2"
SWING OVER CROSS SLIDE..........7-1/4"
DISTANCE BETWEEN CENTERS........20"
SPINDLE SPEEDS (VARIABLE).......40-4,000 RPM
SPINDLE NOSE....................D1- 3
HOLE THRU SPINDLE...............1-13/32"
THREADS (INCH) (60).............3-184 TPI
FEEDS (50)......................0.0005"-0.016"
CROSS SLIDE TRAVEL..............8"
TAILSTOCK QUILL TAPER...........#2MT
TAILSTOCK QUILL TRAVEL..........3-1/2"
HORSEPOWER......................3 HP
DIMENSIONS (L X D X H)..........63" x 35" x 48"
WEIGHT..........................3,000 LBS
ACU-RITE II Digital Readout
Tailstock
Upgraded Electric AC Drive
Mimik Tracer
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
