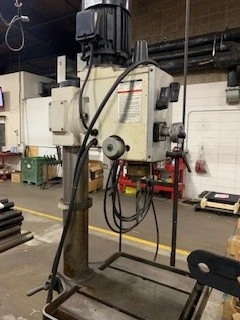

Jet GHD-20PF Drill Press

Drills to Center of Circle (In.).....20
Spindle Travel (In.).................4-1/2
Style (Type).........................Geared Head
Drilling Capacity Mild Steel (In.)...1-1/4
Drilling Capacity Cast Iron (In.)....1-1/2
Distance Column to Spindle (In.).....10
Table Size (L x W) (In.).............21-3/4 x 19-1/2
Spindle Distance to Base (In.).......44-15/16
Max Spindle Distance to Table........30-1/2
Spindle Taper (In. x TPI)............MT-3
Range of Spindle Speeds (RPM)........60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Quill Diameter (In.).................3
Table Travel (In.)...................25-1/2
Quill Feed...........................Manual
T-Slot Centers (In.).................9
Work Table Weight Capacity (Lbs.)....275
Base Work Table (In.)................15-1/4 x 13
Column Diameter (In.)................4-1/2
Base Dimensions (In.)................26 x 18
Motor (HP)2 HP (2 Speed).............230V, 3Ph
Overall Dimensions (In.).............32 x 24 x 71
Weight (Lbs.)........................660

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
