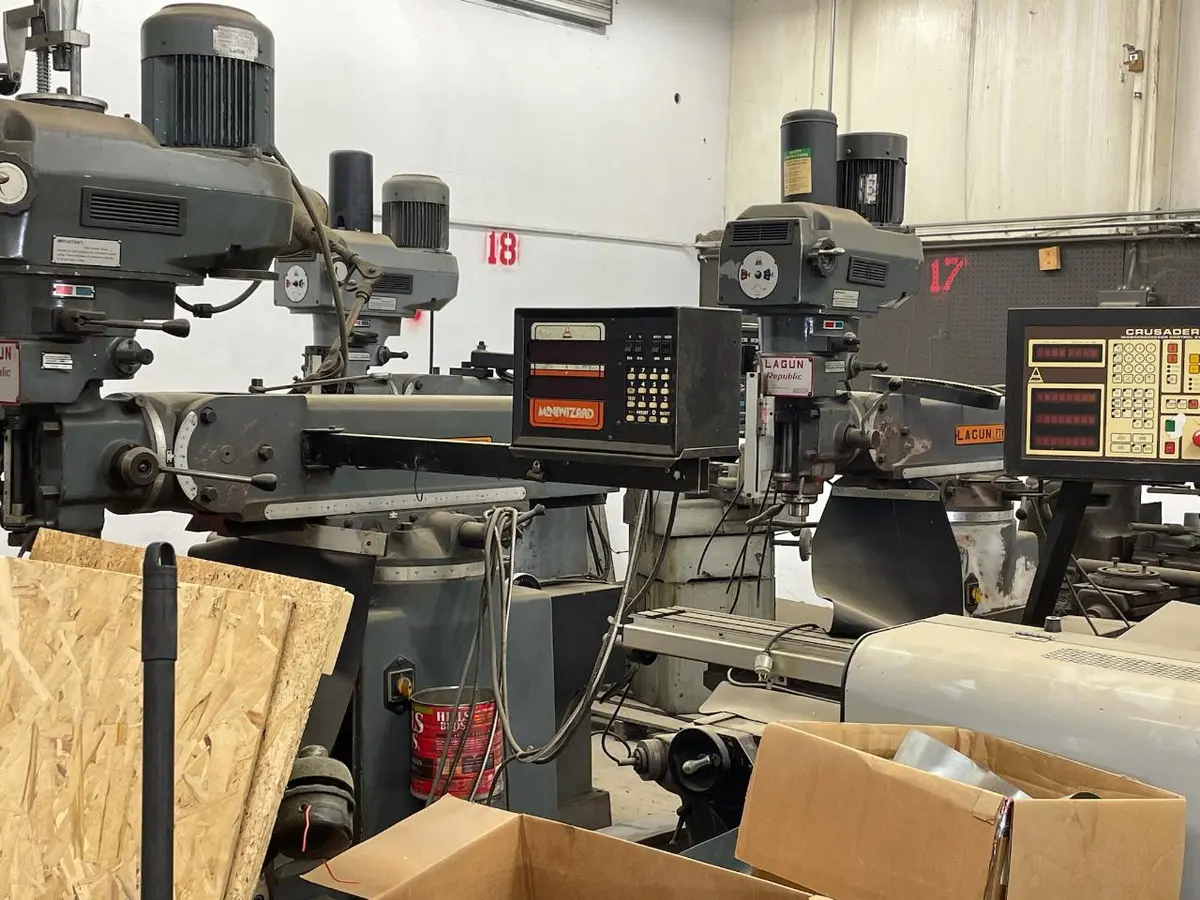

LAGUN REPUBLIC FTV-2 MANUAL MILL

LAGUN REPUBLIC FTV-2 MANUAL MILL

SPECIFICATIONS:
Table Size..........................55.25" x 10"
T-Slots.............................3 on 2.51" centers
T-Slot Size.........................0.629"
Maximum Weight Allowed on Table.....750 lb
Table Travel (Manual)...............37.99"
Table Travel (Power Feed)...........34.64"
Cross Travel........................15.98"
Knee Travel.........................15.98"
Ram Travel..........................22.44"
Main Motor..........................5 HP
Variable Speed with (high-low)
Manual Settings.....................55 RPM to 4,250 RPM
Low.................................(55 RPM to 490 RPM)
High................................(490 RPM to 4,250 RPM)
Electronic Variable Speed...........0 RPM to 4,200 RPM
Head Swivel.........................+/- 90°
Head Tilt...........................+/- 45°
Distance, Spindle to Coumn..........5.00" to 26.96”
Distance, Spindle to Table up to....17.99”
Power Feed per Revolution...........0.00157" | 0.00314" | 0.00511"
Spindle Taper.......................R-8
Quill Diameter......................3.38"
Machine Weight......................2,854 lb
Machine Dimensions..................66.92" x 62.99" x 103.93"

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS**
