Used 1991 BETENBENDER 120T | Press Brakes

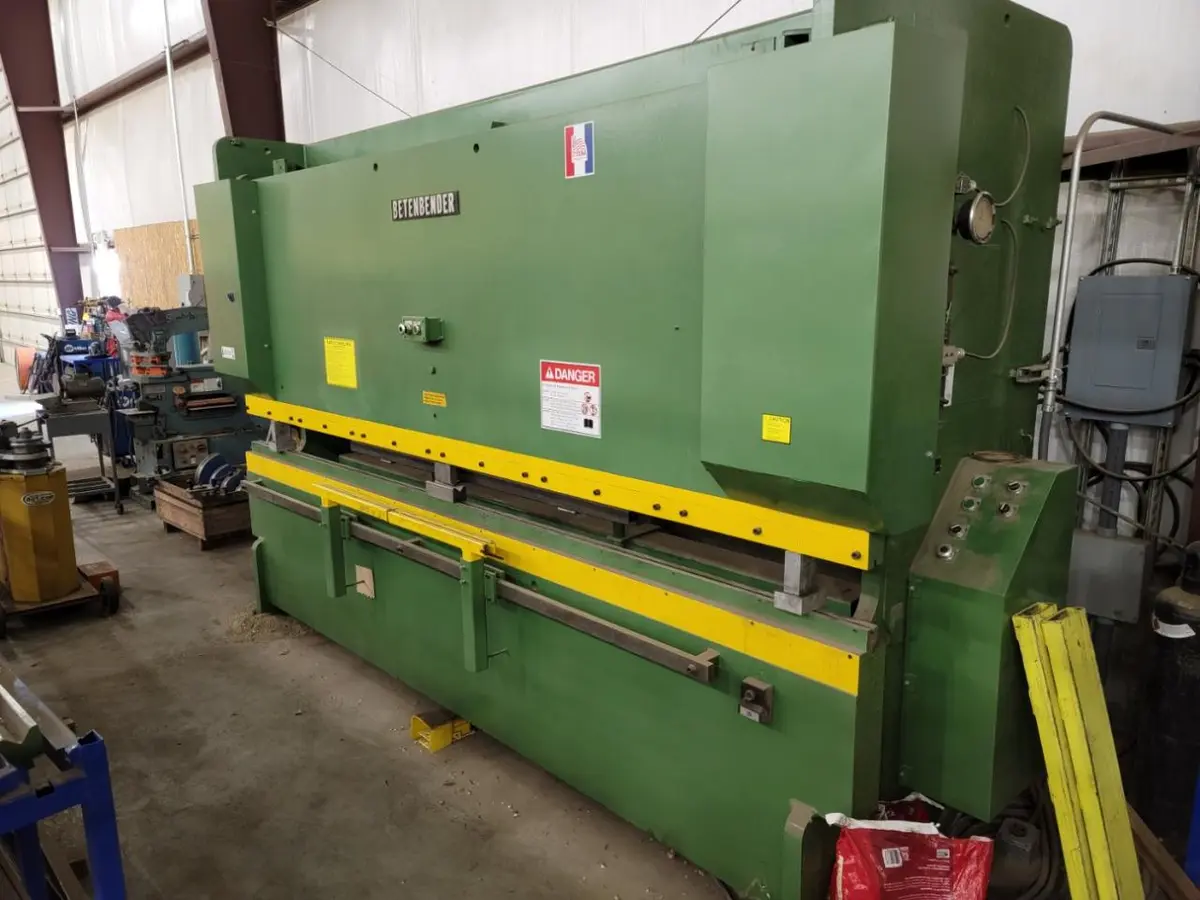

Betenbender 12′ x 120 Ton Hydraulic Press Brake
NEW: 1991

SPECIFICATIONS:
Width of Bed………………..5″
Width of Upper Machined Ram…..2-3/4″
Throat Depth………………..8″
Stroke……………………..6″
Open Height…………………14″
Closed Height……………….6″
Height of Bed……………….37″
Distance Between Housing……..126-1/2″
Width of Upper Ram…………..3″
Width of Upper End Plates…….50″
Press (IPM)…………………40″
Rapid Approach (IPM)…………87″
Return to Open (IPM)…………115″
Hydraulic Pressure…………..2,750 PSI
Back Gauge………………….24″ Manual Clamp Type, Adjustable X, Y, and Z
Motor………………………20 HP / 230v, 460v / 3ph
Dimensions………………….159″ x 56 1/2″ x 103″
Weight……………………..Approx. 24,000 lbs.

EQUIPPED WITH:
Powered Back Guage
Support Arms
Foot Pedal

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & FEATURES**
