Used 2011 YUASA DMNC-280 | Rotary Tables

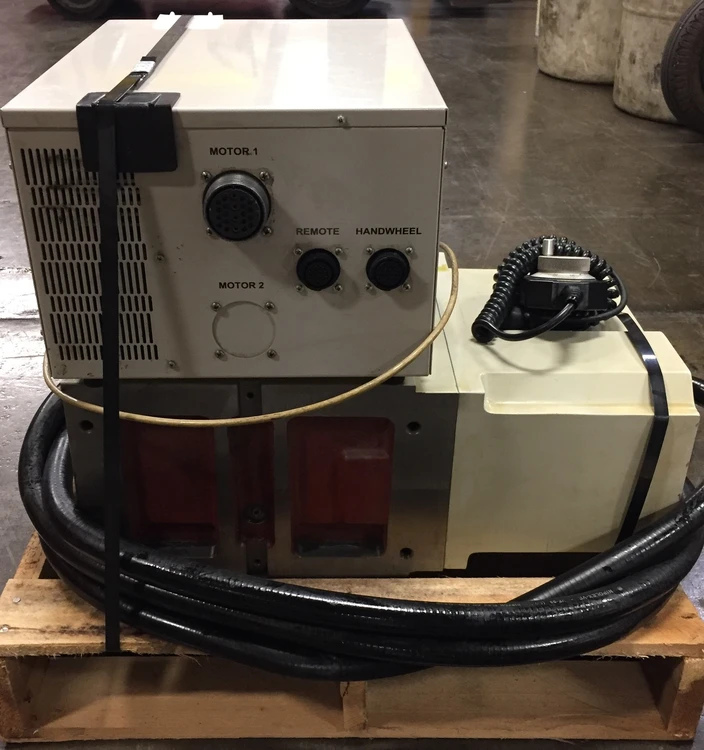

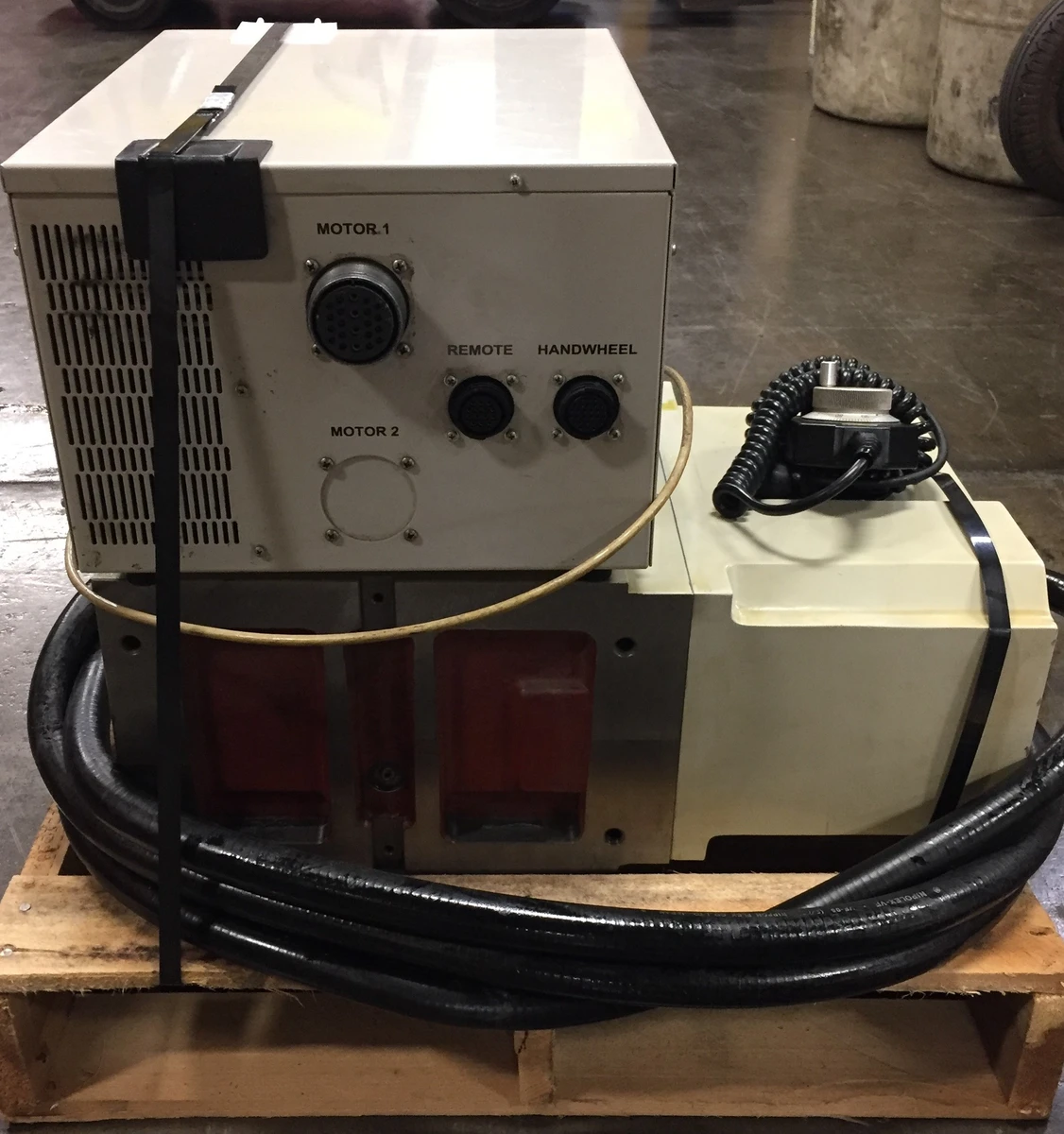

Yuasa DMNC-280 Rotary Table with UDNC-M1 Control
NEW: 2011

SPECIFICATIONS:
Sub-Table O.D………………………….11.02″
Sub-Table Bore I.D……………………..1.65″
Sub-Table Threaded I.D………………….M36 P3.0
Center Height………………………….7.48″
Max PRM……………………………….36
Spindle Torque…………………………780 FT/LBS
Spindle Brake Torque Pneumatic Brake……..325 FT/LBS
Hydraulic Brake………………………..515 FT/LBS
Resolution…………………………….0.000375″
Max Load Horizontal (Table Position)……..400 LBS
Max Load Vertical (Table Position)……….200 LBS
Positioning Accuracy……………………+/- 10 SECONDS
Repeatability………………………….+/- 2 SECONDS
Motor…………………………………Digital AC Servo
Setting Position……………………….HORIZONTAL OR VERTICAL
Through Hole Diameter…………………..3.54″
Power Supply…………………………..105-240 VAC SINGLE PHASE 20 AMP
Gear Ratio…………………………….120 : 1
Spindle Runout…………………………0.006″
T-Slotted Face Plate……………………6-SLOT
Net Weight…………………………….282 LBS

EQUIPPED WITH:
UDNC-M1 Control
Hand Wheel

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
