Used 2011 REMS UNIMAT 75 | Pipe Threaders

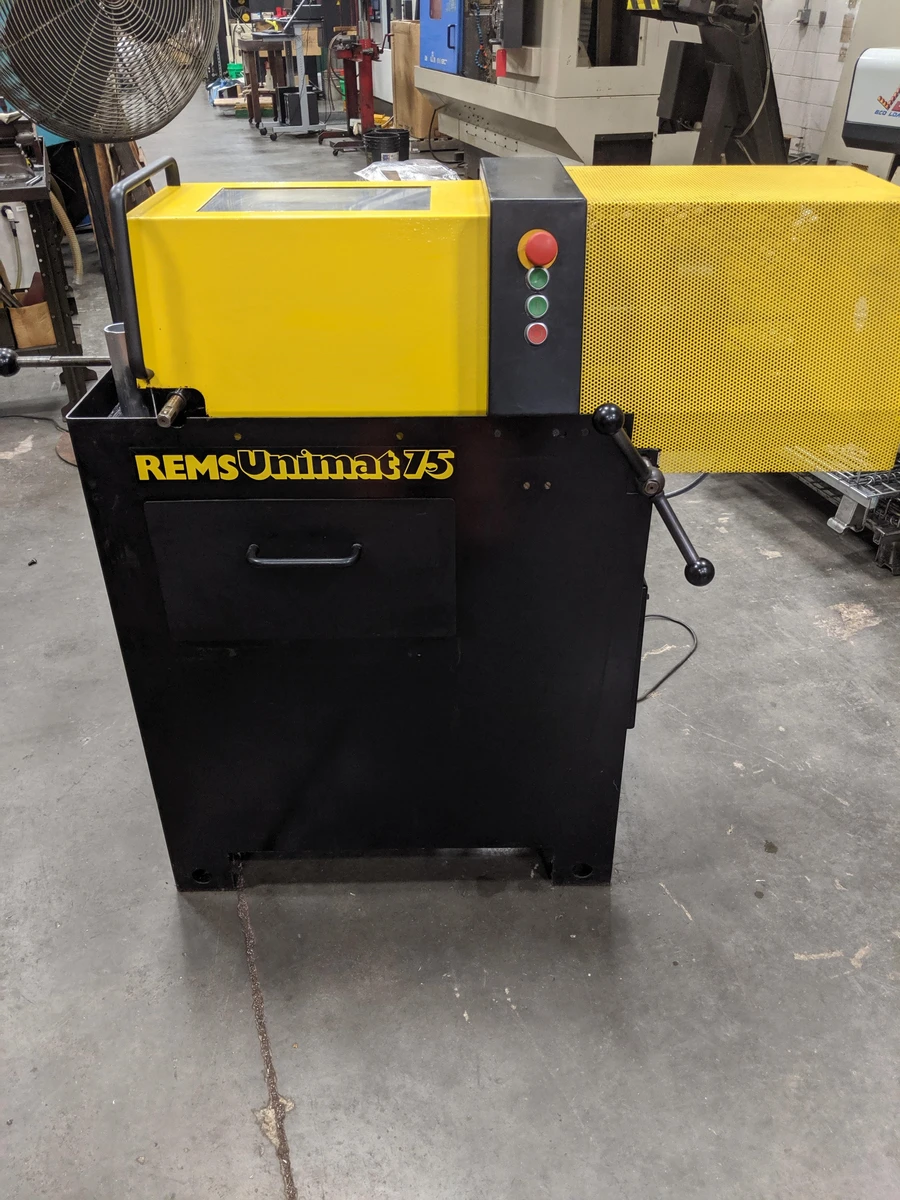

REMS Unimat 75 Semi-Automatic Threading Machine with hyd/pneumatic clamping outfitted for 1-2” NPT threading
NEW: 2011

DESCRIPTION:
Thread cutting machine “REMS Unimat 75″ is a semi-automatic high-performance machine for efficient cutting of bolt and pipe threads
Use in industry, metal working and installation
Threading machine for single and series production

SPECIFICATIONS:
For bolt threads……………….6 to 72 mm, 1/4″ to 2 3/4″
For pipe threads……………….1/16″ to 2 1/2″, 16 to 63 mm
Tolerance class to 13…………..”medium” (6 g)
Chamfer……………………….range 7-78 mm, chamfered diam. > 7 mm, 7 mm largest bevel, chamfer angle 45°
Peel………………………….range 7-78 mm, peeled diameter 7 mm to 63 mm
Cutting head speeds…………….70 and 35 l/min
Electrics……………………..230V, 3PH, 60Hz

APPLICATION:
with tangential chasers system
large cutting range, fast operation and short conversion
after a slight incision with feed lever and rack ratio automatic feed of the cutting head
Rugged planetary gear with a hollow sun gear for the long thread
with a stable, torsion, self-centuring universal vice for the entire chip area
Optional manual charging or oil hydraulic / pneumatic actuation by foot with
Automatic lubrication and cooling and a universal automatic die head for all threads
Tapping machine on frame
Without cutting sets, without locking lever
Electrically interlocked protection, setting gauge and key work

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS**
