SNK PC-60V 5-Axis
Have one to sell?
ConditionUsed
1 available

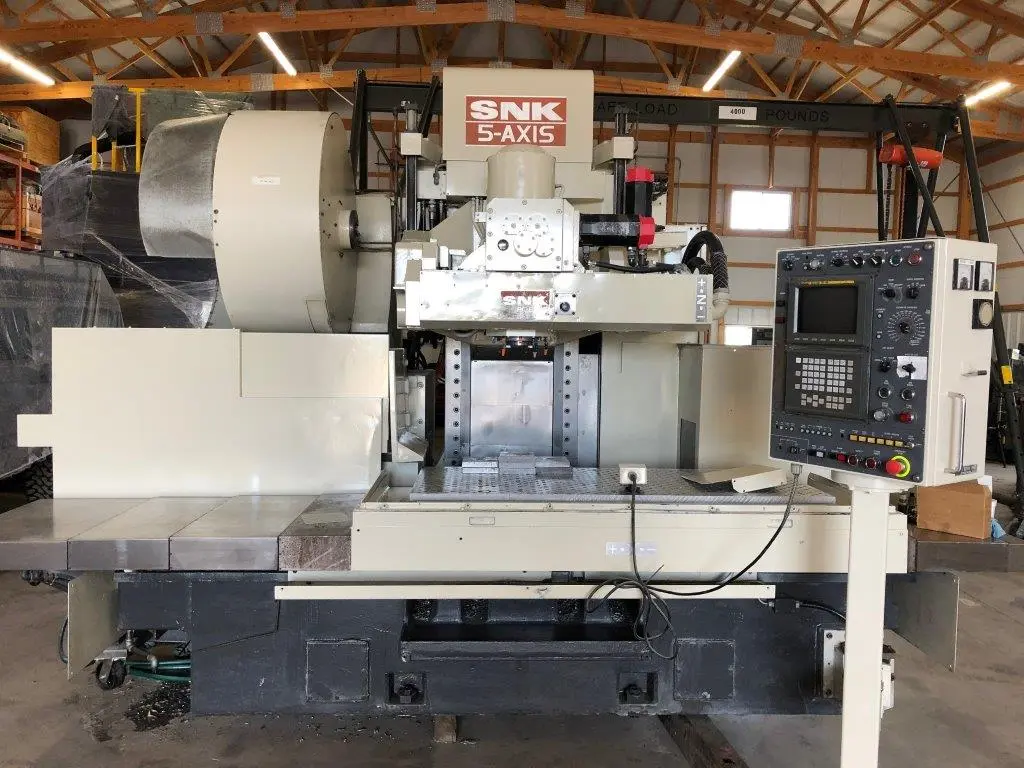

1996 SNK PC-60V 5-Axis Machining Center with Fanuc 16M Control, 5,000 RPM, CAT-50 Spindle, 74" x 32" Max Part Size.
TABLE SIZE…………………62″ X 26″
TABLE LOAD…………………4,000 LBS
MAXIMUM PART SIZE…………..74″ X 32″
SPINDLE NOSE TO TABLE……….5″ – 23″
X-AXIS TRAVEL………………60″
Y-AXIS TRAVEL………………25″
Z-AXIS TRAVEL………………18″
A-AXIS…………………….+/- 25 DEGREES
B-AXIS…………………….+/- 25 DEGREES
SPINDLE MOTOR………………30 HP
SPINDLE SPEED………………5000 RPM
SPINDLE TAPER………………CAT-50
NUMBER OF TOOLS…………….24 ATC
MACHINE WEIGHT……………..32,000 LBS.
FANUC 16M CNC CONTROL
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
