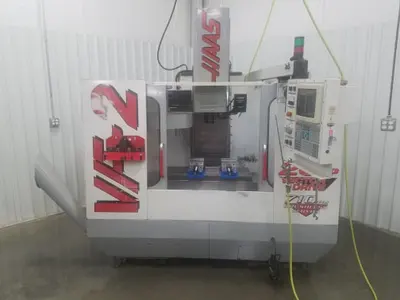

Haas VF-2

TABLE SIZE…………………………………………………..36″ x 14″
MAX. TABLE LOAD (EVENLY DISTRIB.)………..3,000 LBS
SPINDLE NOSE TO TABLE TOP……………………..4″ – 24″
X AXIS TRAVEL…………………………………………….30″
Y AXIS TRAVEL……………………………………………..16″
Z AXIS TRAVEL…………………………………………….20″
RAPID TRAVERSE RATE ALL AXES……………….710 IPM
CUTTING FEED RATE ALL AXES…………………..0.1 – 393 IPM
SPINDLE SPEEDS (2 SPEED GEARED)…………..0-7,500 RPM
SPINDLE TAPER……………………………………………CAT 40
SPINDLE MOTOR………………………………………….20 HP
TOOL CHANGER CAPACIT…………………………….20 STATIONS
MAX. TOOL WEIGHT…………………………………….12 LBS
APPROX. DIMENSIONS…………………………………88″ x 93″ x 106″H
APPROX. WEIGHT…………………………………………8,500 LBS
