WARNER & SWASEY 5A TURRET LATHE

SPECIFICATIONS:
MAXIMUM SWING OVER BED……………..36-1/2″
MAXIMUM SWING OVER CARRIAGE…………32-3/4″
MAXIMUM LENGTH TURNED………………83-5/8″
MAX DISTANCE SPINDLE TO TURRET FACE….104-3/16″
SPINDLE HOLE………………………12-1/2″
SPINDLE NOSE………………………A1-20
SPINDLE SPEEDS…………………….10 TO 281 RPM
FEEDS…………………………….(16) 0.005″ TO 0.167″ LONGITUDINAL / (16) 0.003″ TO 0.103″ CROSS
CROSS SLIDE TRAVEL…………………91-9/16″ LONGITUDINAL / 21″ CROSS
HEX TURRET TRAVEL………………….91-9/16″ LONGITUDINAL / 15″ CROSS
MOTOR…………………………….50 HP
OAD (APPROXIMATE)………………….248″ L-R X 84″ F-B X 82″ HIGH
WEIGHT (APPROXIMATE)……………….25,000 LBS.

EQUIPPED WITH:
28″ 4-JAW CHUCK

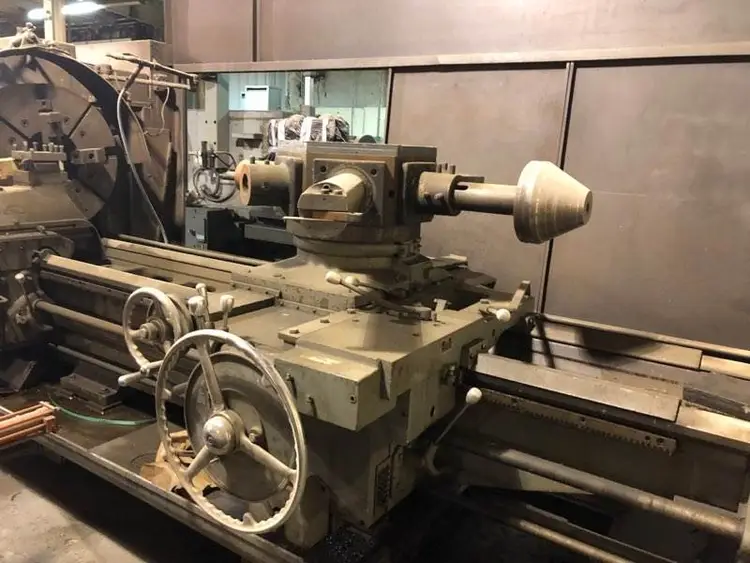

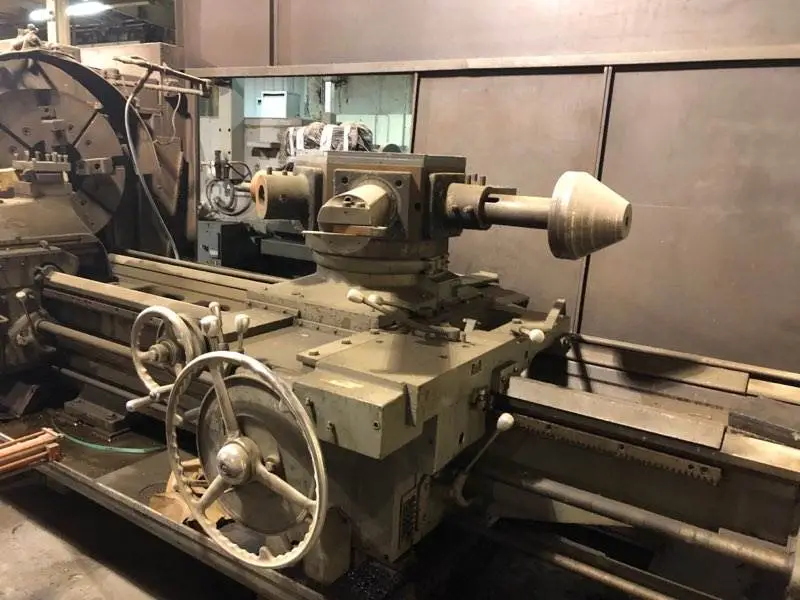

FRONT & REAR CROSS SLIDING HEX TURRET
4-WAY TOOLPOST
CHIP PAN BED

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
