Used OSAMA SJ-1760-G | Engine Lathes

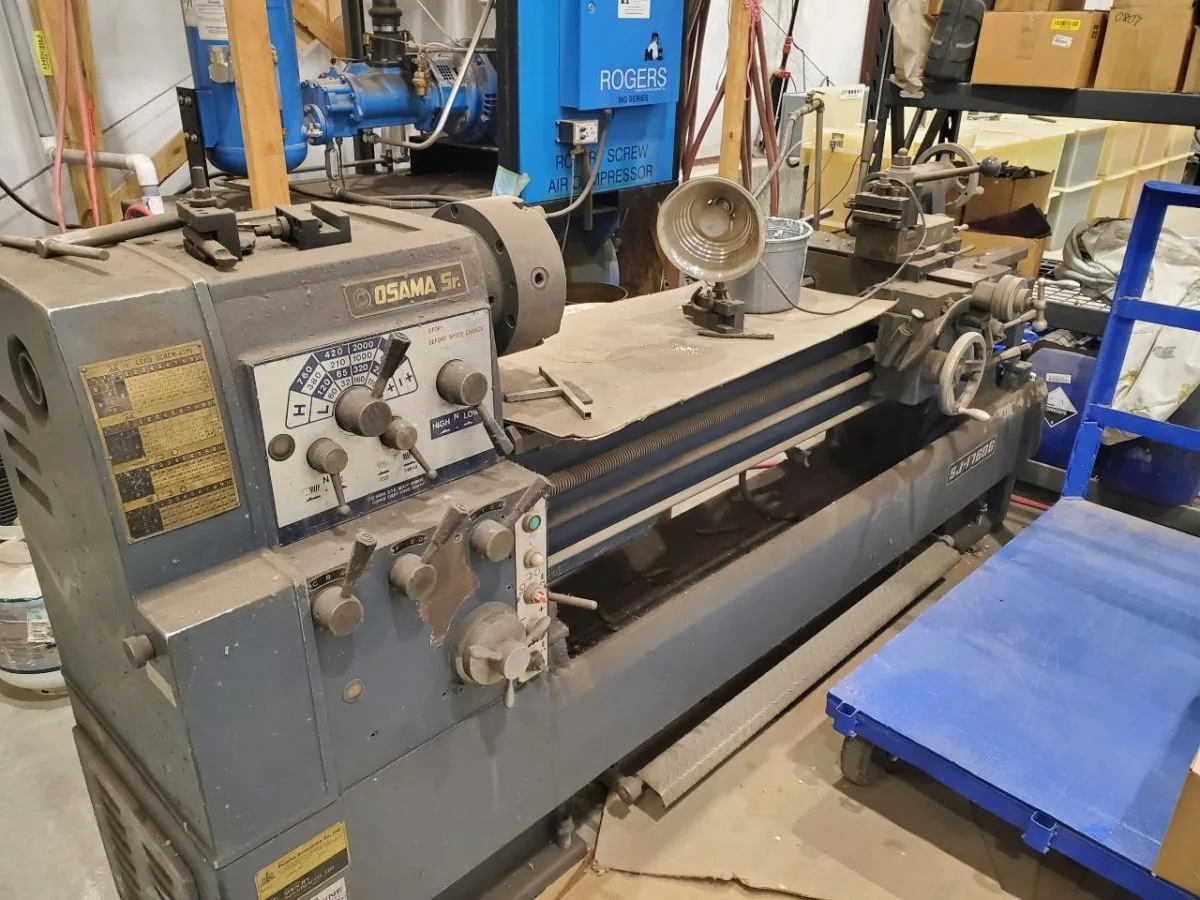

Osama Sr. SJ-1760G Gap Bed Tool Room Lathe

SPECIFICATIONS:
Swing Over Bed……………………17″
Swing Over Cross Slide…………….9″
Distance Between Centers…………..60″
Hole Through Spindle………………2″
Swing in Gap……………………..24″
Spindle Nose……………………..D1-6
Spindle Taper…………………….MT#4
Spindle Speed…………………….2,000 RPM
Longitudinal Feeds………………..0.088-0.618
Cross Feeds………………………0.032-0.222
Tailstock Quill Travel…………….4″
Inch Threads……………………..4-56 TPI
Metric Threads……………………P0.5-97
Spindle Motor…………………….5 HP
Machine Weight……………………5,500 LBS

EQUIPPED WITH:
10″ 3-Jaw Chuck

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & FEATURES**
