Mazak FH-680
Have one to sell?
ConditionUsed
1 available

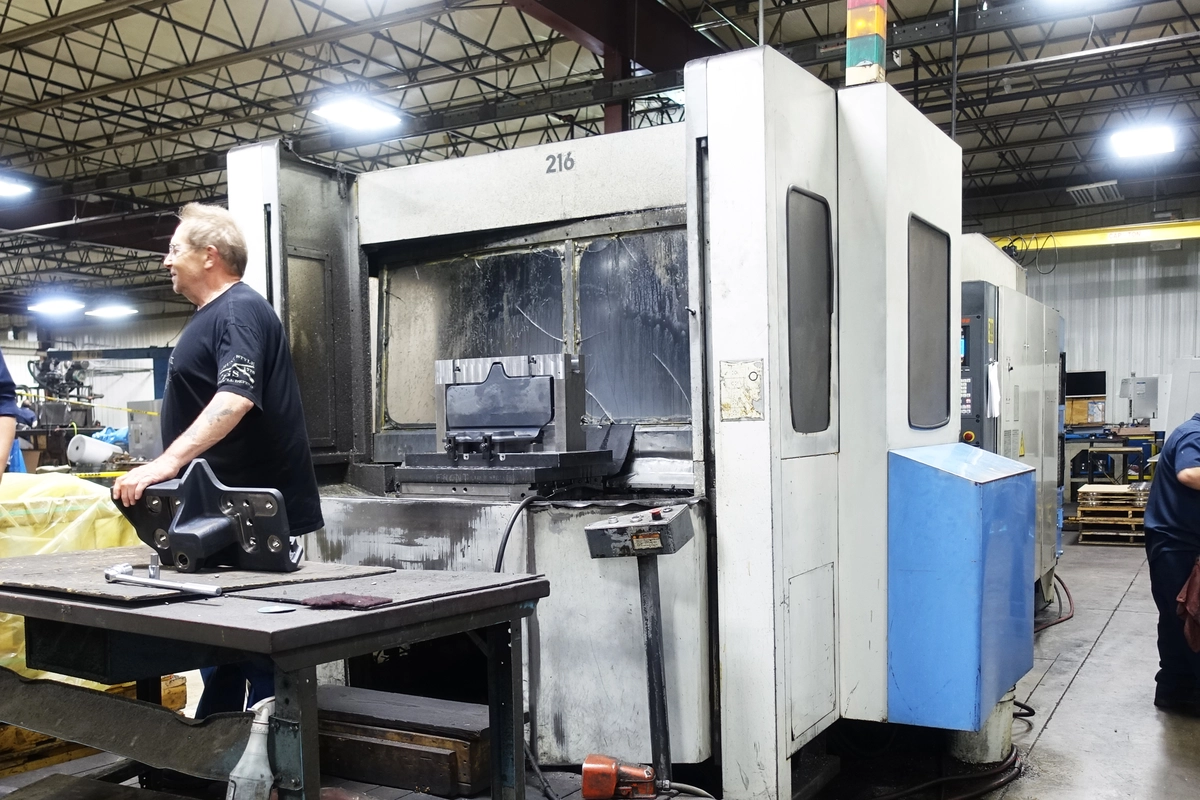

1996 Mazak FH-680 - M-Plus CNC Control, 24.8" Pallets, 10,000 RPM, CAT-50 Spindle, 60 ATC, 1 Degree 4th Axis, Through Spindle Coolant, Chip Conveyor. Machine is under Power and Operational.
Pallet Size.....................24.8" x 24.8"
Maximum Table Load..............2,800 LBS
Spindle Nose to Table...........7.87" x 40.35"
Pallet Top to Spindle...........3.93" x 35.4"
Pallet Index....................1 DEGREE
Number of Pallets...............2
X-Axis Travel...................41.94"
Y-Axis Travel...................31.5"
Z-Axis Travel...................32.4"
Spindle Speed...................10,000 RPM
Spindle Taper...................CAT-50
Main Motor......................40 HP
Rapid Traverse Rate.............1,260 IPM
Number of Tools.................60 ATC
Tool Change Time................2.3 TOOL-TOOL & 6.5 CHIP-CHIP
Max Tool Weight.................66 LBS
Max Tool Length.................19.68"
Machine Weight..................46,600 LBS
Mazatrol M-Plus CNC Control
Remote Manual Pulse Generator
10,000 RPM Spindle
CAT-50 Taper
Thru Spindle Coolant
Spindle Chiller
60 ATC
Rigid Tapping
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
