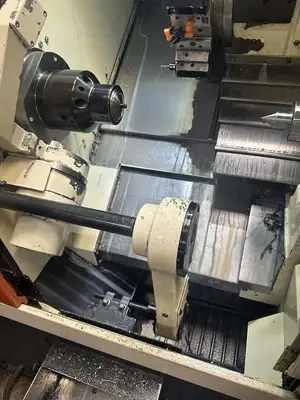

Mazak QTS-100S CNC Lathe
Have one to sell?
ConditionUsed
1 available

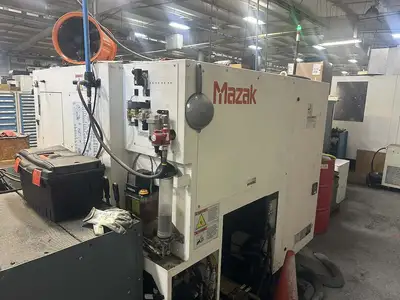

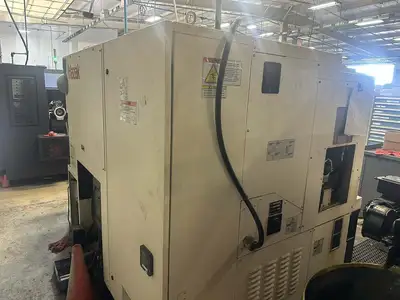

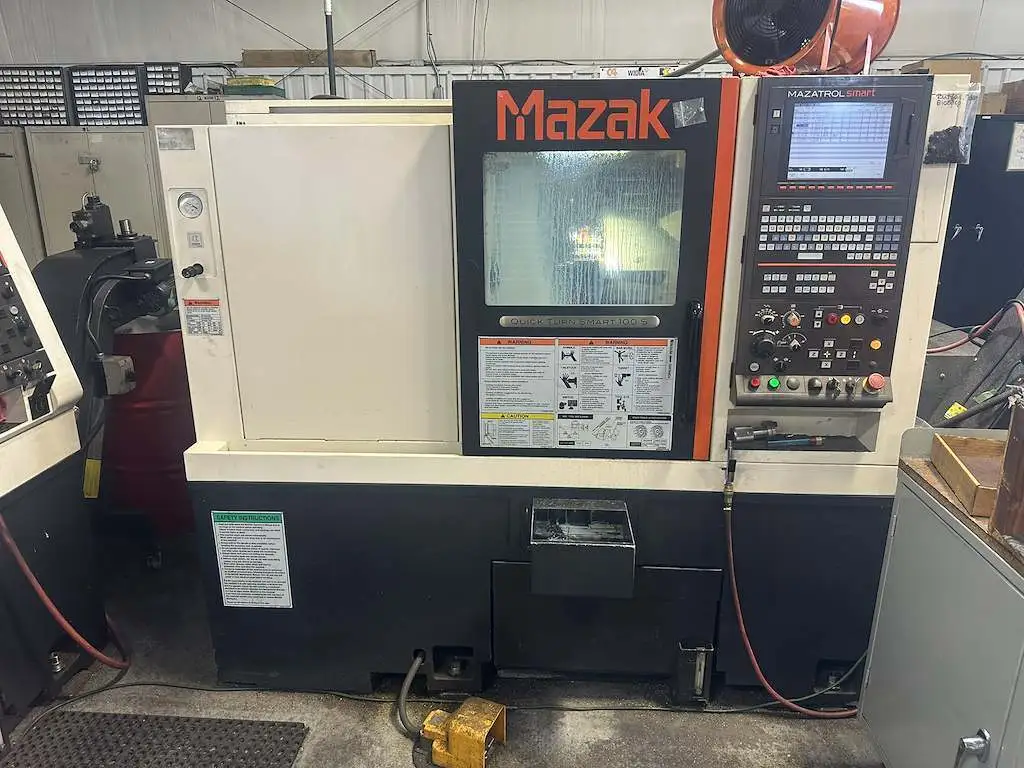

2015 Mazak QTS-100S 2-Axis CNC Turning Center with 6" 3-Jaw Chuck, Programmable Tailstock, Parts Catcher, Tool Setter, and Chip Conveyor.
Maximum Swing...........................23"
Maximum Turning Diameter................11.0"
Maximum Machining Length................12.15"
X-Axis Travel...........................7.875"
Z-Axis Travel...........................13.375"
Spindle Motor...........................15 / 10 (30 MIN/CONT.)
Spindle Nose............................A2-5
Spindle Bore............................2.4"
Bar Capacity............................1.65"
Spindle Speed...........................6,000 RPM
Rapid Traverse Rates X-Axis.............1299 IPM
Rapid Traverse Rates Z-Axis.............1417 IPM
Turret Type.............................DRUM TURRET
Number of Tools.........................12
Tool Shank Height.......................0.75"
Boring Bar Shank Diameter...............1.25"
Turret Index Time.......................0.17 SEC (ONE POS.)
Tailstock Stroke........................13.75"
Approx. Shipping Dimensions.............75" x 63" x 67"
Approx. Shipping Weight.................7,700 Lbs

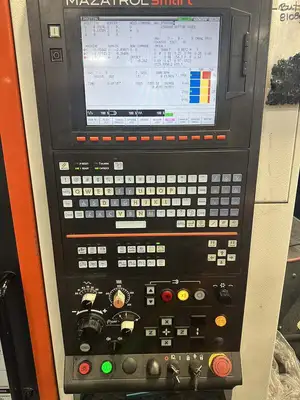

Mazatrol Smart CNC Control
6" 3-Jaw Chuck
Tool Setter
Parts Catcher

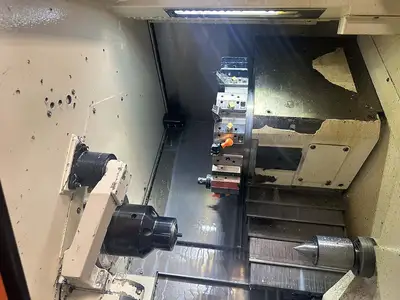

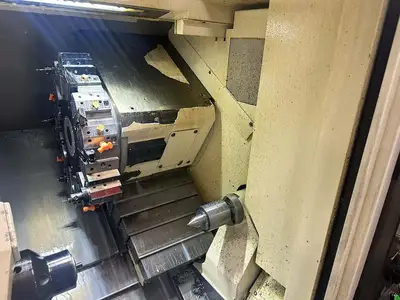

12 Station Turret

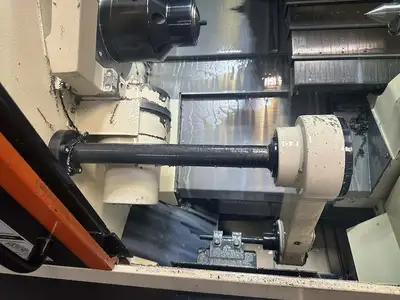

Programmable Tailstock

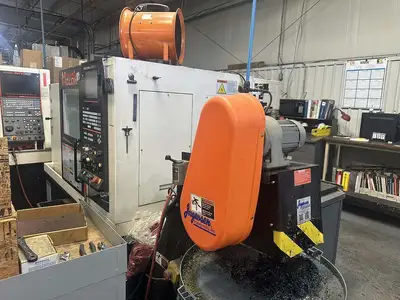

Side Discharge Chip Conveyor
**COLLET CHUCK NOT INCLUDED, 6 INCH 3-JAW INCLUDED IN SALE**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2015 Mazak QTS-100S 2-Axis CNC Turning Center with 6" 3-Jaw Chuck, Programmable Tailstock, Parts Catcher, Tool Setter, and Chip Conveyor.
Imperial
| Swing | 23" |
| Machining Length | 12.15" |
| # Axis | 2 |
| Chuck Size | 6" |
| Bar Capacity | 1.65" |
| Power | 15 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 11" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (Mazatrol Smart CNC Control) |
| Dimensions | 75" x 63" x 67" |
| Weight | 7,700 LBS |
Maximum Swing...........................23"
Maximum Turning Diameter................11.0"
Maximum Machining Length................12.15"
X-Axis Travel...........................7.875"
Z-Axis Travel...........................13.375"
Spindle Motor...........................15 / 10 (30 MIN/CONT.)
Spindle Nose............................A2-5
Spindle Bore............................2.4"
Bar Capacity............................1.65"
Spindle Speed...........................6,000 RPM
Rapid Traverse Rates X-Axis.............1299 IPM
Rapid Traverse Rates Z-Axis.............1417 IPM
Turret Type.............................DRUM TURRET
Number of Tools.........................12
Tool Shank Height.......................0.75"
Boring Bar Shank Diameter...............1.25"
Turret Index Time.......................0.17 SEC (ONE POS.)
Tailstock Stroke........................13.75"
Approx. Shipping Dimensions.............75" x 63" x 67"
Approx. Shipping Weight.................7,700 Lbs
Mazatrol Smart CNC Control
6" 3-Jaw Chuck
Tool Setter
Parts Catcher
12 Station Turret
Programmable Tailstock
Side Discharge Chip Conveyor
**COLLET CHUCK NOT INCLUDED, 6 INCH 3-JAW INCLUDED IN SALE**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
