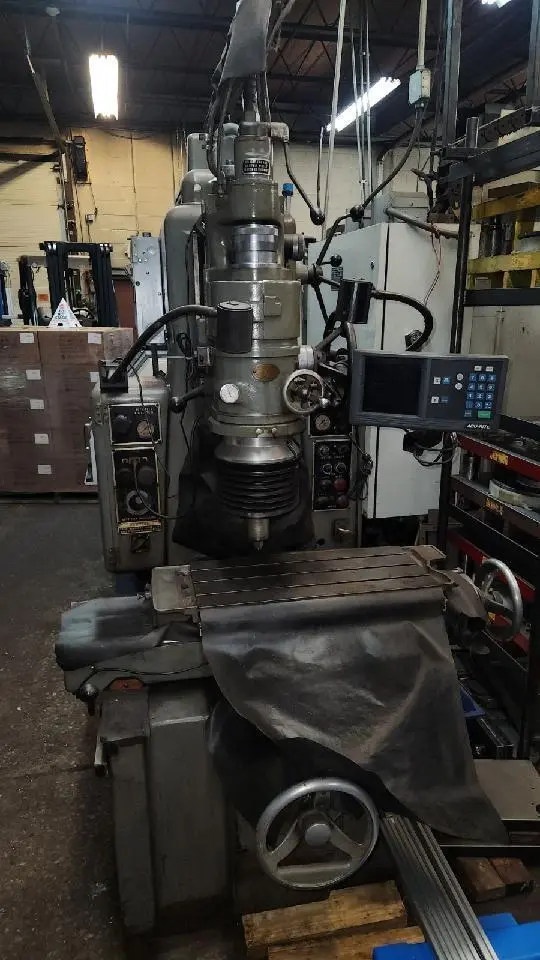

Moore #3 with #2 Head
Jig Grinders
Moore #3 with #2 Head includes Acu-Rite DRO, Moore #2 Head (Best of Both Models), and 45,000 RPM Spindle. Machine was Rebuilt approx. 10 Years ago.
| Table Size-W | 11" |
| Table Size-L | 24" |
| Dimensions | 80" FB x 65" LR x 102" H |
| Weight | 3800 Lbs |
AREA OF TABLE......................... 24" X 11"
LONGITUDINAL TABLE TRAVEL............. 18"
CROSS TRAVEL.......................... 11"
SPINDLE HOUSING VERTICAL TRAVEL....... 12-5/8"
SPINDLE HEAD VERTICAL TRAVEL.......... 3-5/8"
DISTANCE TABLE TO WHEEL COLLET........ 2" MINIMUM, 18" MAXIMUM
SPINDLE COLUMN WAYS................... 10"
VARIABLE SPINDLE SPEEDS............... 25 – 225 RPM
VARIABEL SPINDLE FEEDS................ 2 – 120 SPM
BORE HOLE RANGE....................... 1/64" – 3-1/2"
SPINDLE SPEEDS ....................... 45,000 RPM
APPROX. DIMENSIONS.................... 80" X 65" X 102"
APPROX. WEIGHT........................ 4,000 LB
ACU-RITE DIGITAL READOUT
45,000 RPM SPINDLE
MOORE #2 HEAD
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
